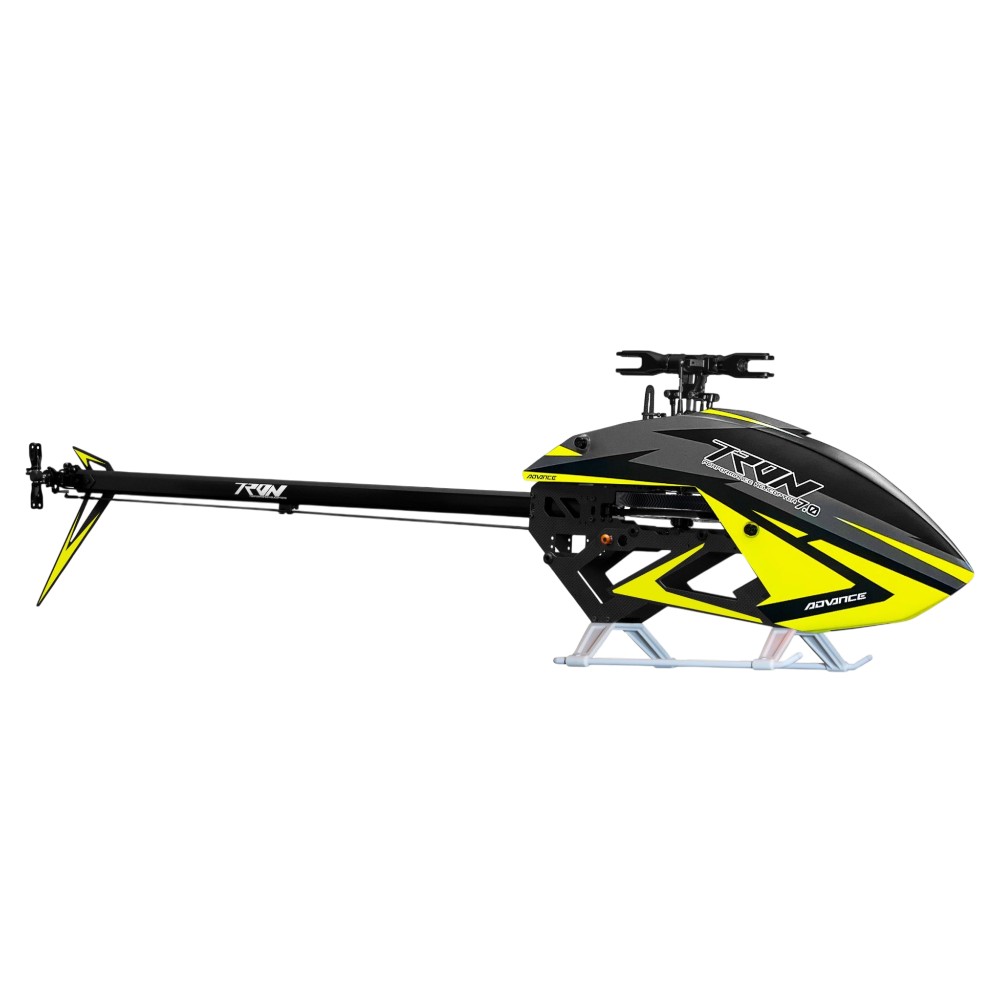

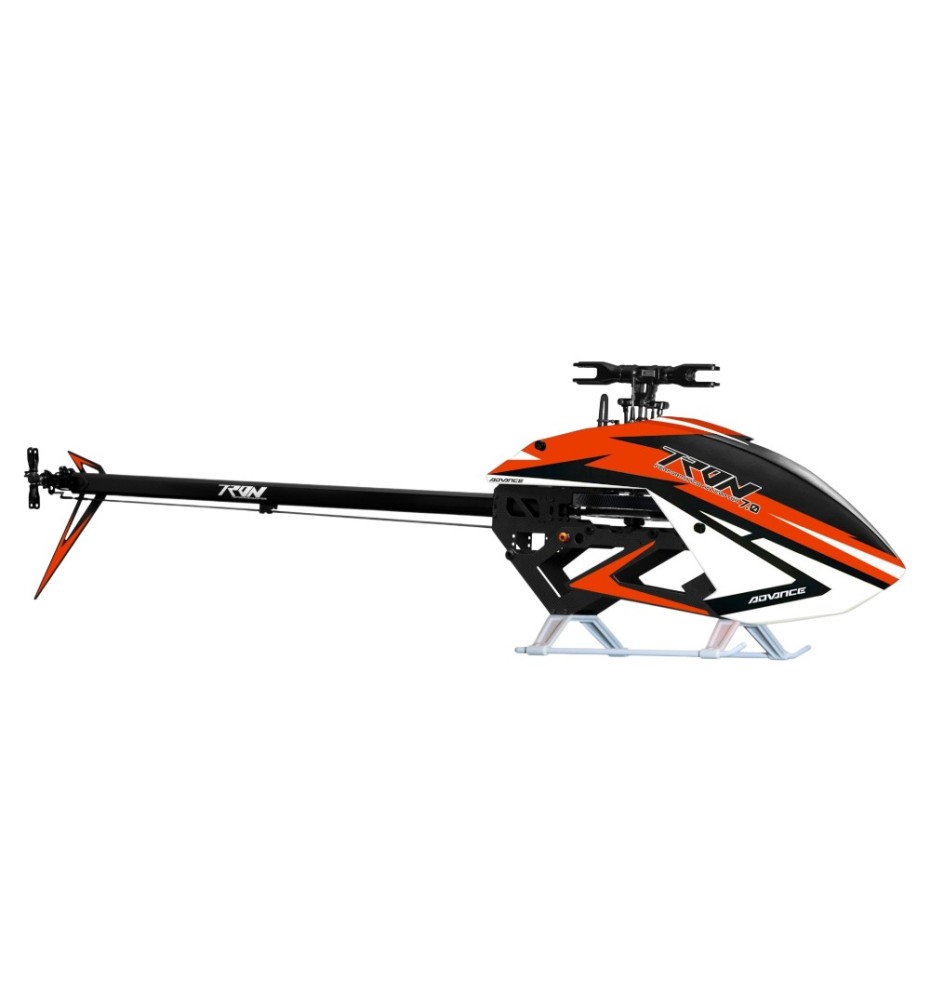

Tron Helicopters Tron 7.0 Advance Electric Helicopter Kit
Product Description
Tron 7.0 Advance - Precision Engineering in the 700 Class
Lightweight Design. Octo Boom Technology. Unmatched Agility.
The Tron 7.0 Advance presents pilots with a comprehensive set of features in high demand, coupled with ease of assembly and meticulously optimized flight performance. This 700-sized powerhouse features an innovative Octo Boom design that eliminates the need for additional supports, resulting in a cleaner look and reduced parts count. With a focus on weight reduction and precision CNC components, the Tron 7.0 Advance delivers a crisp, play-free flying experience for the most demanding pilots.
Sophisticated Drive Train & Airframe
Built upon robust 2mm carbon fiber frames, the Tron 7.0 Advance utilizes a 12mm hollow main shaft and a 10mm spindle shaft for maximum rigidity. The updated Herringbone split CNC main gear ensures super quiet and efficient power transfer, while the bearing block supported pinion reduces wear on the entire drivetrain. Its unique belt tensioner and semi-fusion lower frame combine aesthetics with functional visibility, making it a standout in both performance and appearance.
Precision CNC Components
Full CNC rotor head and tail systems ensure virtually zero play, providing surgical precision during aggressive 3D maneuvers.
Smart Servo Layout
Optimized servo geometry designed to work seamlessly with modern Flybarless (FBL) systems for direct and linear control response.
Technical Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Completion Level | Unassembled Kit |
| Power Plant Type | Electric |
| Airframe Weight | 2190g |
| Main Blade Length | 685mm - 720mm |
| Tail Blade Length | 95mm - 116mm |
| GEARING & RATIOS | |
| Main Drive Gear / Pinion | 151T / 16T (Included) |
| Autorotation / Tail Drive | 125T Pulley / 25T Gear |
| Drive Gear Ratio | 9.43 : 1 : 5.08 |
| HARDWARE DATA | |
| Main Shaft | 12mm Hollow |
| Spindle Shaft | 10mm |
| Frame Material | 2mm Full Carbon Fiber |
Key Product Highlights
- Compact Belt Tensioner: State-of-the-art design for consistent power delivery and easy maintenance.
- Octa Boom Design: Oval side shapes provide extreme rigidity without the weight of traditional support struts.
- Quick-Release Battery System: Wide compartment with a secure locking mechanism for fast pack changes.
- Supersonic Mounts: Includes high-quality canopy mounts for secure fitting and vibration reduction.
Needed to Complete:
- 6+ Channel Radio & Receiver
- 685-720mm Main Blades
- 95-116mm Tail Blades
- 130A+ Brushless ESC
- 4035-4535 (520-560kV) Motor
- 3x Cyclic & 1x Tail Servo (Full Size)
- 3-Axis Flybarless System
- 12S 5000mAh LiPo Battery
- Compatible LiPo Charger
- Assembly Tools & Lubricants
Manufacturer: Tron Helicopters
Model: Tron 7.0 Advance (Airframe Kit)
Note: This is an unassembled kit. Electronics, blades, and motor are sold separately.
