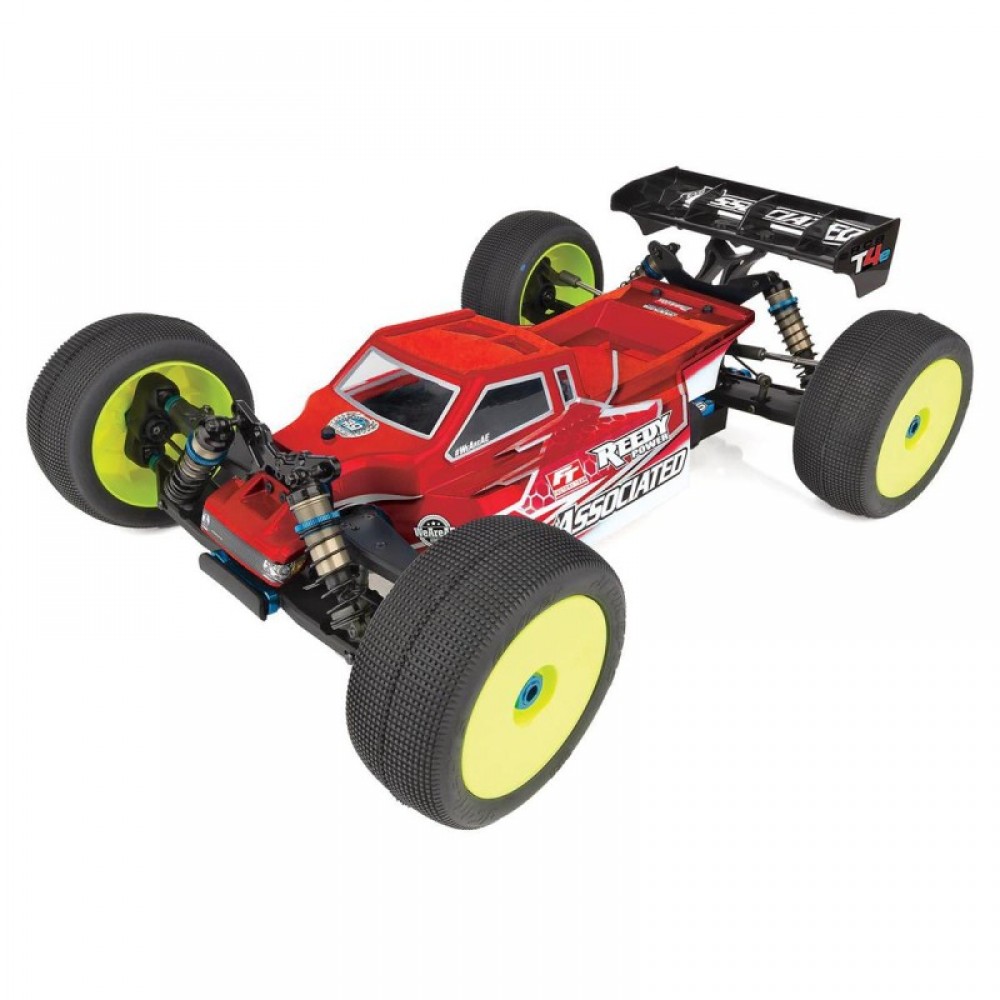

Team Associated RC8T4e Team Competition Electric Truggy Kit
Product Description
RC8T4e Team Kit - The Future of Electric Truggy Racing
Modular Battery Layout. Innovative Front-End Geometry. Area 51 Engineering.
The Team Associated RC8T4e raises the bar for 1/8 scale electric off-road racing. Engineered at the famous Area 51, this kit features an updated chassis layout that supports four different battery configurations, allowing you to tailor the center of gravity (CG) and weight bias to your specific driving style. Combined with V3 differentials and a high-efficiency drivetrain, the RC8T4e is built for the podium.
Modular Balance & Drivetrain Efficiency
The RC8T4e is designed for superior chassis balance. Whether you choose dual 2S shorty LiPos for the lowest possible CG or a single 4S pack for a simplified setup, the centrally mounted differential and in-line driveshafts ensure maximum power delivery. The front gearbox features a 3.5-degree inclined pinion gear, straightening the center driveshaft to reduce vibration and phasing for a smoother, more efficient ride.
4 Battery Configurations
Choose between two 2S shorty LiPos, two full-size saddle packs, one 4S shorty, or one full-size 4S LiPo for unmatched weight bias tuning.
V3 High-Performance Diffs
Equipped with 46T ring and 10T pinion gears, these V3 differentials offer improved gear ratios and increased durability for high-torque electric power.
Precision Suspension
16mm shocks with V2 springs, stiff shock bladders, and combination bleeder/emulsion caps provide elite-level damping on technical tracks.
Technical Specifications
| RC8T4e TEAM KIT PRODUCT DATA | |
|---|---|
| Scale Size | 1:8 Scale |
| Drive Type | 4WD Off-Road Truggy |
| Power Source | Electric (Brushless) |
| Length | 560mm (22.05 in) |
| Steering Geometry | 8° Steering Blocks / +2° Arms |
| Differentials | V3 (46T Ring / 10T Pinion) |
| Shocks | 16mm Aluminum Threaded collars |
| Drive Axles | Front and Rear Center Dogbones |
What's Included?
- (1) RC8T4e Team Competition Electric Truggy Kit
- Adjustable Rear Wing with Angle Shims
- Symmetrical Rear Hubs with Axle Height Inserts
- Detailed Assembly Manual & Factory Decals
Needed To Complete:
- 1:8 Scale Brushless Motor & ESC
- 4S LiPo Battery (or two 2S saddle packs) & Charger
- 2-channel Surface Transmitter & Receiver
- High-Torque Steering Servo & Pinion Gear
- 1:8 Truggy Body, Wheels, and Tires
- Polycarbonate specific paint & Assembly Tools
- Silicone Fluids (Shock/Diff) and CA Tire Glue
Racer's Insight: The RC8T4e’s use of center dogbone driveshafts significantly reduces friction compared to CVAs in the center position, allowing for cooler motor temperatures and longer run times during intensive competition finals.
