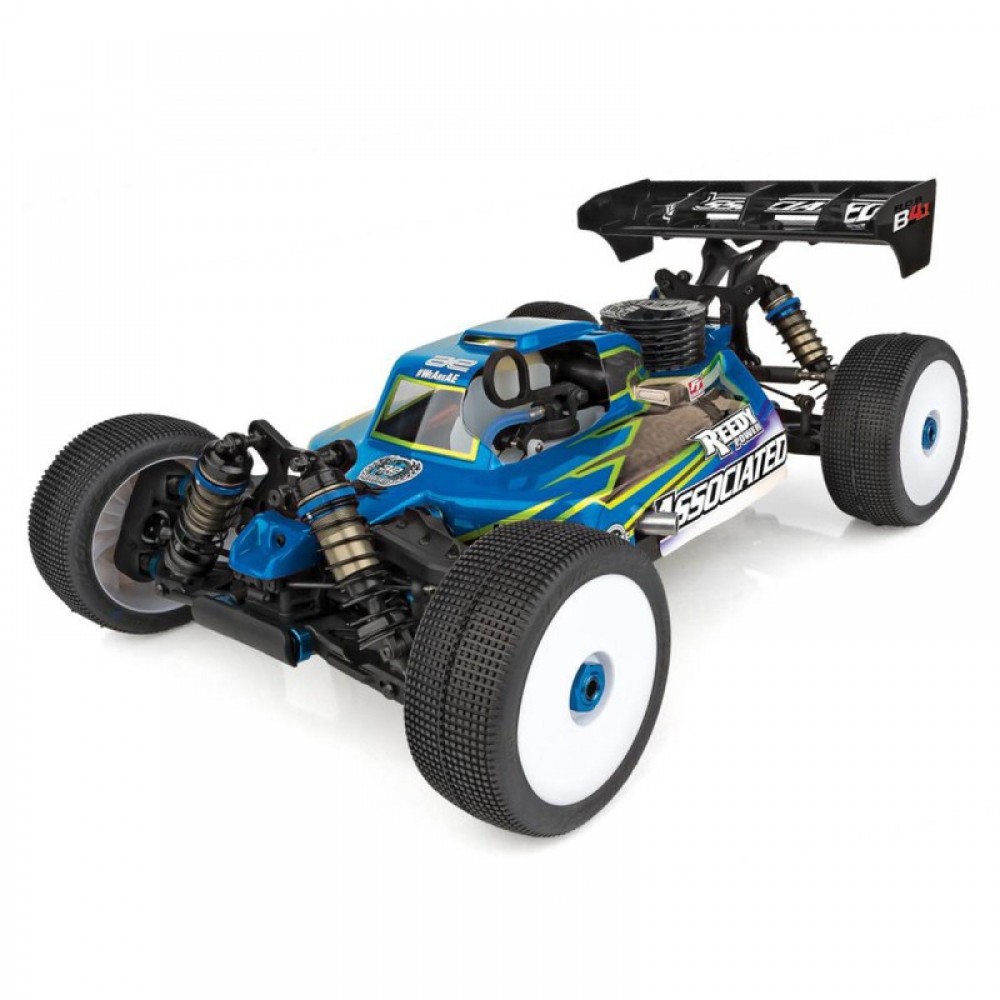

Team Associated RC8B4.1 Team 1/8 4WD Off-Road Nitro Buggy Kit
Product Description
RC8B4.1 Team Kit - Engineered for the Finish Line
Full RWB Integration. Ultra-Low CG. Refined Nitro Dominance.
The Team Associated RC8B4.1 hits the scene as the definitive evolution of the RC8 platform. Incorporating the critical data learned from the RWB (Regular Wheelbase) project, the 4.1 chassis fully integrates a tapered chassis design with even more performance updates. Every element—from the shock towers to the swaybar geometry—has been meticulously revised to create a buggy that is more stable, more durable, and faster than ever before.
Lower Center of Gravity & Precision Suspension
The RC8B4.1 focuses on lowering the Center of Gravity (CG) to enhance cornering speeds and stability. This is achieved through shorter 16mm front and rear shocks paired with lightweight aluminum shock towers. To refine handling, the kit includes updated 6-hole machined pistons and +1 aluminum steering block arms, delivering sharper steering response particularly on low-grip track surfaces.
RWB Tapered Chassis
A fully integrated Regular Wheelbase design with tapered side guards for optimized flex and superior handling in rough conditions.
Enhanced Drivetrain
Equipped with 92mm universal driveshafts and 17mm outdrives, coupled with a 44/13 ring and pinion bevel gear set for maximum efficiency.
Refined Swaybar Geometry
Updated rear swaybar geometry improves drivability and traction over both smooth blue-groove and bumpy off-road tracks.
Technical Specifications
| RC8B4.1 TEAM KIT PRODUCT DATA | |
|---|---|
| Scale Size | 1:8 Scale |
| Drive Type | 4WD Nitro Off-Road |
| Chassis Design | RWB Tapered with Side Guards |
| Wheelbase | 323mm (12.72 in) |
| Length | 486mm (19.13 in) |
| Shock Pistons | 1.4mm Front / 1.5mm Taper Rear (6-Hole) |
| Gear Ratio | 44/13 Ring and Pinion Set |
| Power Source | Nitro Fuel (.21 Class Engine) |
What's Included?
- (1) Team Associated RC8B4.1 Team Kit
- Low CG Lightweight Aluminum Shock Towers
- +1 Aluminum Steering Block Arms
- Detailed Assembly Instruction Manual
Needed To Complete:
- .21 Class Rear Exhaust Engine & Exhaust System
- 2 or 3 Channel Radio System & Receiver Battery (4.8V-7.4V)
- High-Torque Steering & Throttle Servos
- Starter Box, Glow Igniter, and Fuel Bottle
- 1:8 Scale Buggy Wheels & Tires
- Nitro Model Fuel (20-30% recommended)
- Polycarbonate Paint, Silicone Fluids, and Assembly Tools
Racer's Insight: The RC8B4.1's switch to shorter 16mm shocks is a game-changer for high-speed stability. By lowering the center of gravity, the buggy stays much flatter through high-bite sweepers, allowing you to carry more corner speed without the risk of traction rolling.
