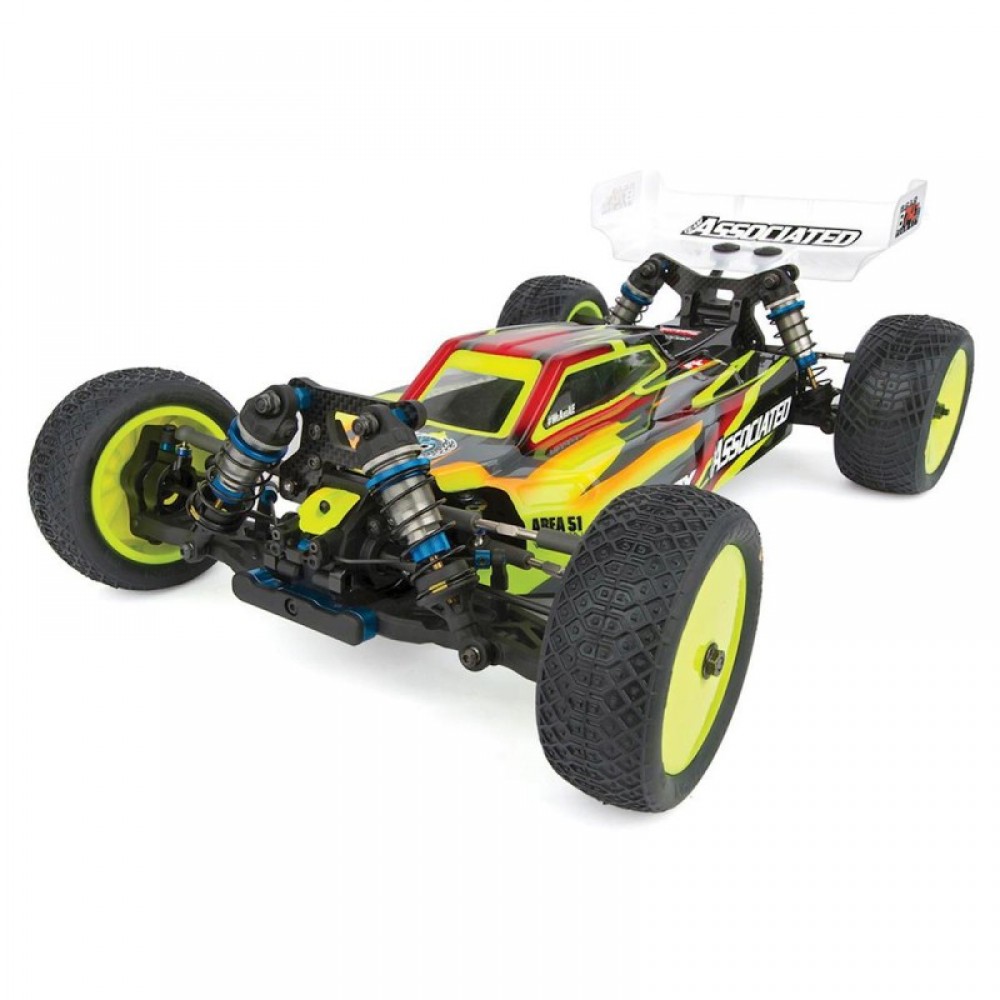

Team Associated RC10B74.1D Team 1/10 4WD Off-Road Electric Buggy Kit
Product Description
RC10B74.1D Team Kit - The Dirt & Clay Powerhouse
Dirt-Optimized 4WD. Center Differential Included. Engineered for Traction.
The Team Associated RC10B74.1D is the ultimate choice for racers competing on clay and dirt surfaces. Unlike its carpet-focused sibling, the B74.1D includes a center differential pre-loaded with 200,000 CST fluid to provide smooth power delivery and maximum on-power traction. Refined by Area 51 engineers, this platform features an optimized flex profile and dirt-specific suspension geometry to give you the winning edge on traditional off-road tracks.
Maximum Stability on Loose Surfaces
Every aspect of the B74.1D is tuned for predictability and grip. It features shorter V2 Big Bore threaded aluminum shocks and lowered graphite shock towers to drop the center of gravity. To handle the unique demands of dirt racing, the kit includes symmetric rear arms with inward shock mounting positions and increased chassis flex via 2.0mm G10 brace supports, ensuring the buggy stays planted through rough sections and technical corners.
Center Differential System
Includes 72T and 78T spur gears with 200,000 cSt fluid, providing the perfect balance of drive and stability for dirt and clay tracks.
Optimized Dirt Flex
2.0mm G10 chassis brace supports increase flex, offering more predictable rear traction and superior handling over bumps and imperfections.
Lowered Graphite Towers
The 4mm front and rear shock towers are lowered (2mm front / 5.5mm rear) to improve stability and predictability at high speeds.
Technical Specifications
| RC10B74.1D KIT PRODUCT DATA | |
|---|---|
| Scale Size | 1:10 Scale |
| Drive Type | 4WD (Four Wheel Drive) |
| Completion Level | Unassembled Kit |
| Transmission | Center Differential (200k cSt fluid) |
| Chassis Material | 2mm Hard-Anodized 7075-T6 Aluminum |
| Length | 395mm (15.55 in) |
| Shock Towers | 4mm Graphite (Dirt Optimized) |
| Driveshafts | 66mm Rear CVA for on-power traction |
What's Included?
- (1) RC10B74.1D 4WD Team Buggy Kit
- Center Differential with 72T & 78T Spur Gears
- Dirt-Specific Anti-Roll Bars (1.2mm & 1.3mm)
- Lightweight Clear Body and Wing
Needed To Complete:
- 1:10 scale electric motor & Electronic Speed Control
- 7.4V LiPo or 6.0V LiFe battery
- Compatible Battery Charger
- 2-channel surface transmitter & receiver
- High-torque steering servo
- 1:10 scale off-road dirt wheels & tires
- Polycarbonate specific spray paint
- RC tools, Silicone Shock & Diff fluids
Pro Racing Tip: The B74.1D uses 5.0mm rear hex adapters to provide a wider stance, which is essential for stability when using aggressive dirt tire patterns. Its modular design also allows for an easy swap to a slipper clutch (sold separately) if track conditions evolve into high-grip turf or carpet.
