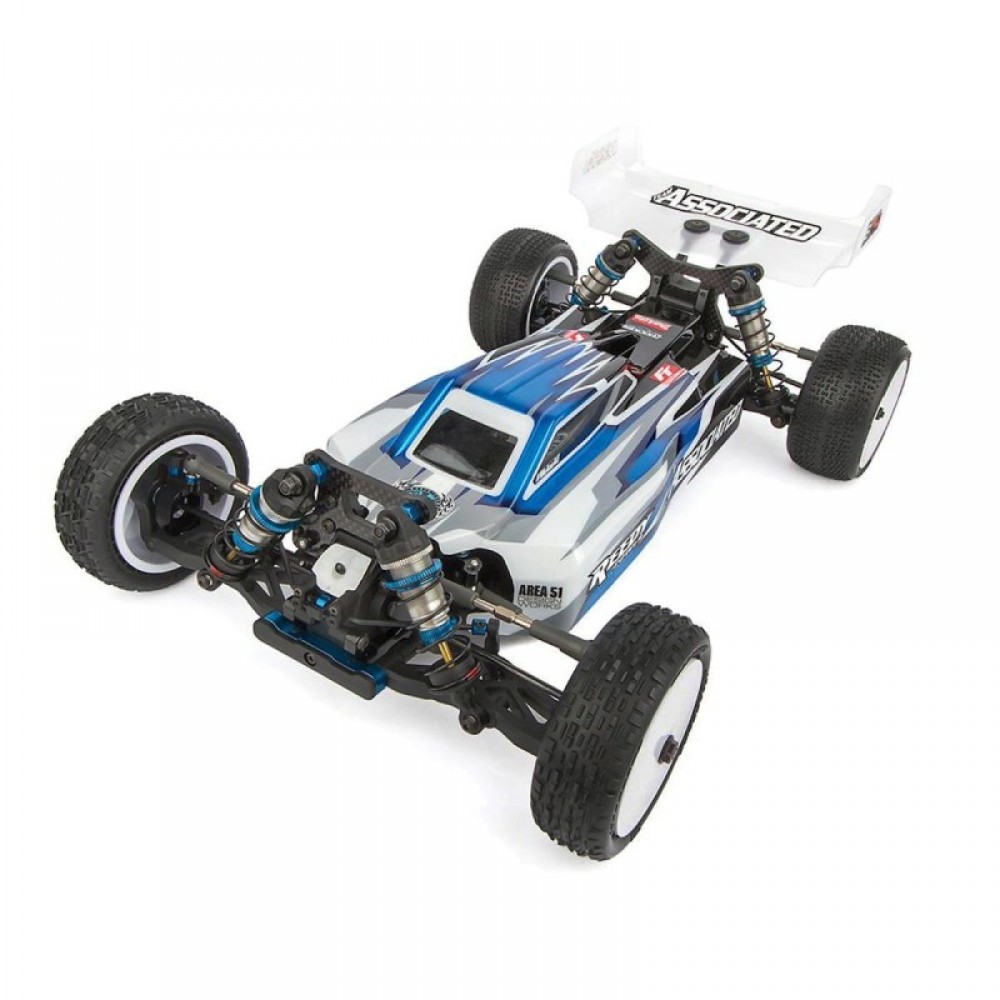

Team Associated RC10B74.1 Team 1/10 4WD Off-Road Electric Buggy Kit
Product Description
RC10B74.1 Team Kit - The High-Grip 4WD Champion
Carpet & Turf Optimized. Octalock Technology. Next-Gen 4WD Performance.
The Team Associated RC10B74.1 is the ultimate weapon for high-grip carpet or turf track surfaces. Engineered by the experts at Area 51, the B74.1 introduces the next-generation Octalock 2-Pad high-load slipper clutch and a significantly lower center of gravity. With redesigned carbon fiber shock towers and updated suspension geometry, this kit provides the stability and precision needed to dominate the increasingly popular high-traction racing scene.
Advanced Octalock Drivetrain & Suspension
The B74.1 features the revolutionary Octalock center slipper clutch, utilizing LCF pad material and 8 locking tabs for maximum consistency under high loads. Handling is further refined with shorter 12mm threaded aluminum shocks and lowered 4mm carbon fiber towers, reducing the center of gravity for flatter cornering. The 7075-T6 aluminum chassis has been updated with optimized mount holes and improved clearance, ensuring a professional-grade racing foundation.
Octalock Slipper Clutch
A next-gen 2-pad high-capacity design with keyed spur gears and LCF pads for superior durability and heat management on high-traction tracks.
Lowered Carbon Towers
Lowered by 2mm in the front and 5.5mm in the rear to significantly drop the center of gravity, improving agility and reducing traction rolls.
LRC Suspension Mounts
Updated aluminum LRC (Low Roll Center) C and D suspension mounts provide better rear-end stability and more tuning options.
Technical Specifications
| RC10B74.1 KIT PRODUCT DATA | |
|---|---|
| Scale Size | 1:10 Scale |
| Drive Type | 4WD (Four Wheel Drive) |
| Completion Level | Unassembled Kit |
| Chassis | 2.0mm 7075-T6 Hard-Anodized Aluminum |
| Transmission | Octalock Center Slipper Clutch |
| Length | 395mm (15.55 in) |
| Shock Towers | 4mm Carbon Fiber (Lowered) |
| Differential Outdrives | Updated Lightweight 16mm Design |
What's Included?
- (1) RC10B74.1 4WD Team Buggy Kit
- Lightweight Clear Body and Wing
- 2.0mm Front & Rear Anti-Roll Bars
- Molded 30mm Fan Mount & ESC Tray
Needed To Complete:
- 1:10 scale electric motor & ESC
- 7.4V LiPo or 6.0V LiFe (Standard or Shorty Case)
- Compatible Battery Charger
- 2-channel surface transmitter & receiver
- High-speed steering servo
- 1:10 scale off-road wheels & tires
- Polycarbonate specific spray paint
- RC tools & Silicone fluids (Shock & Diff)
Engineering Insight: The B74.1 allows for interchangeable use of a center differential or a slipper clutch without changing the center driveshafts, giving you total flexibility to adjust for different track textures and grip levels.
