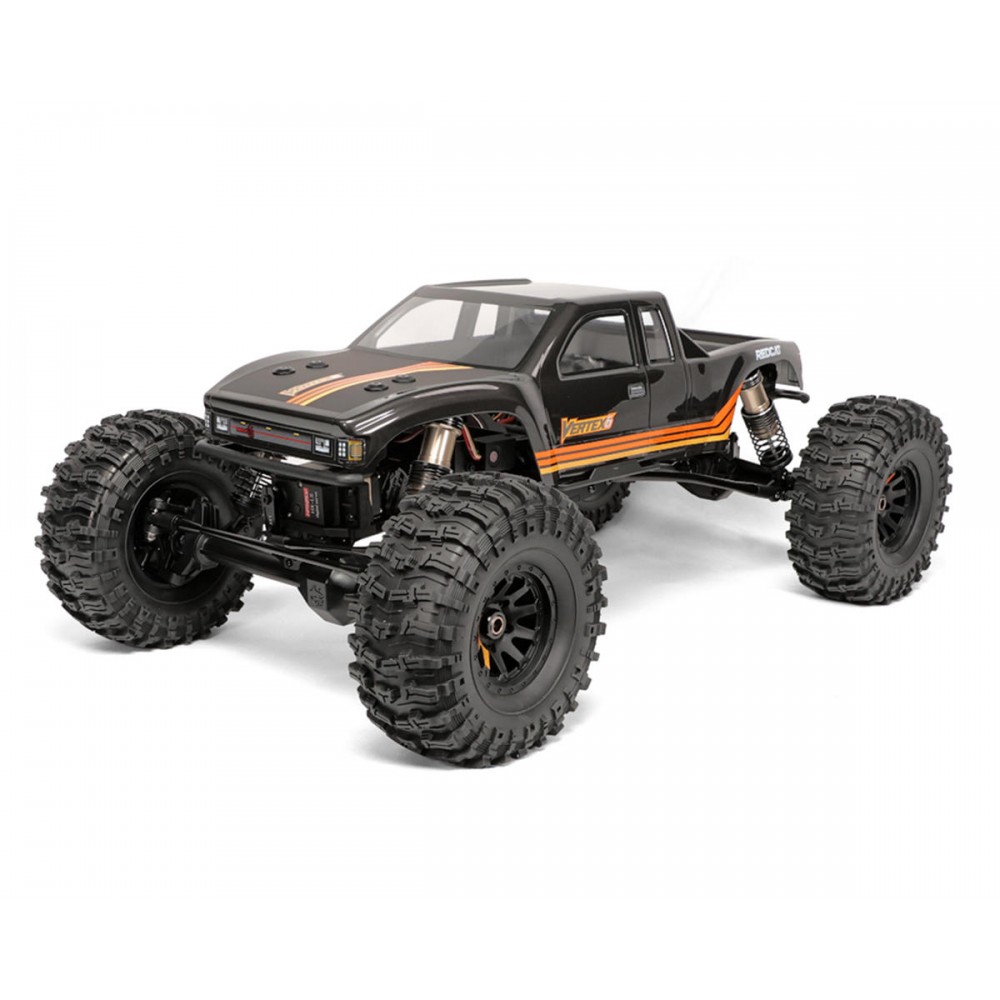

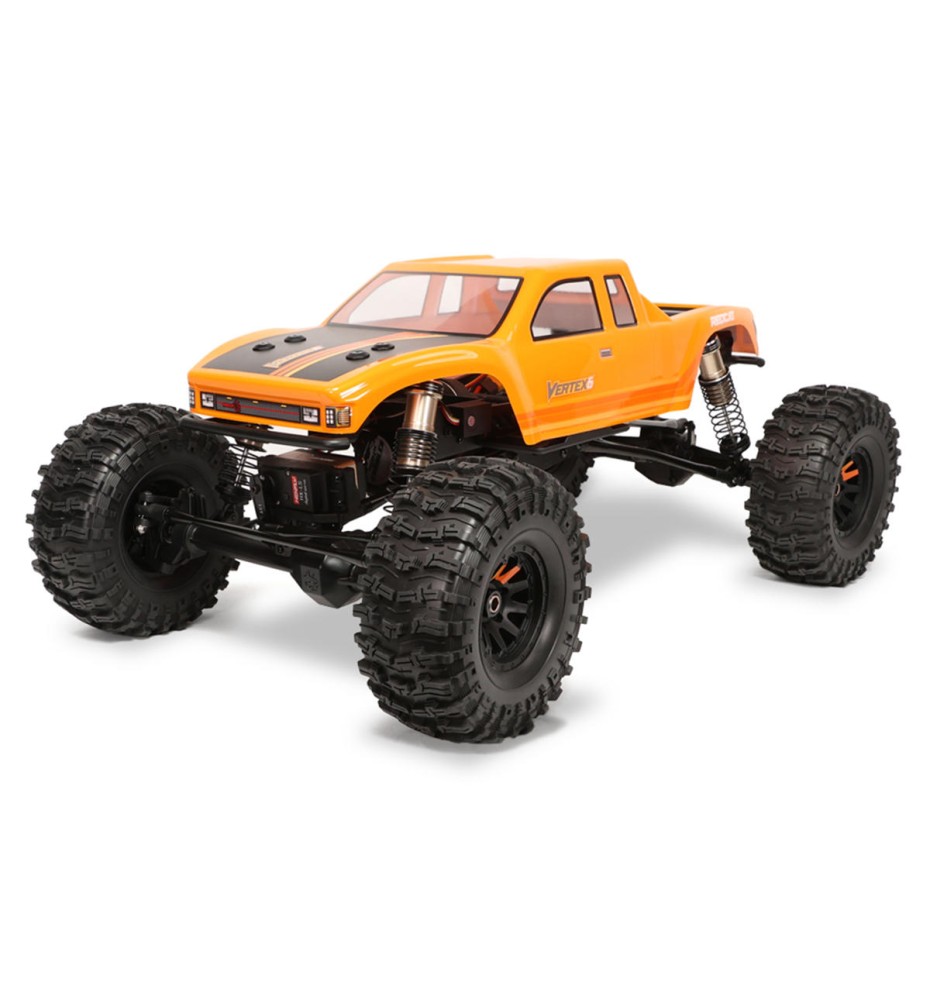

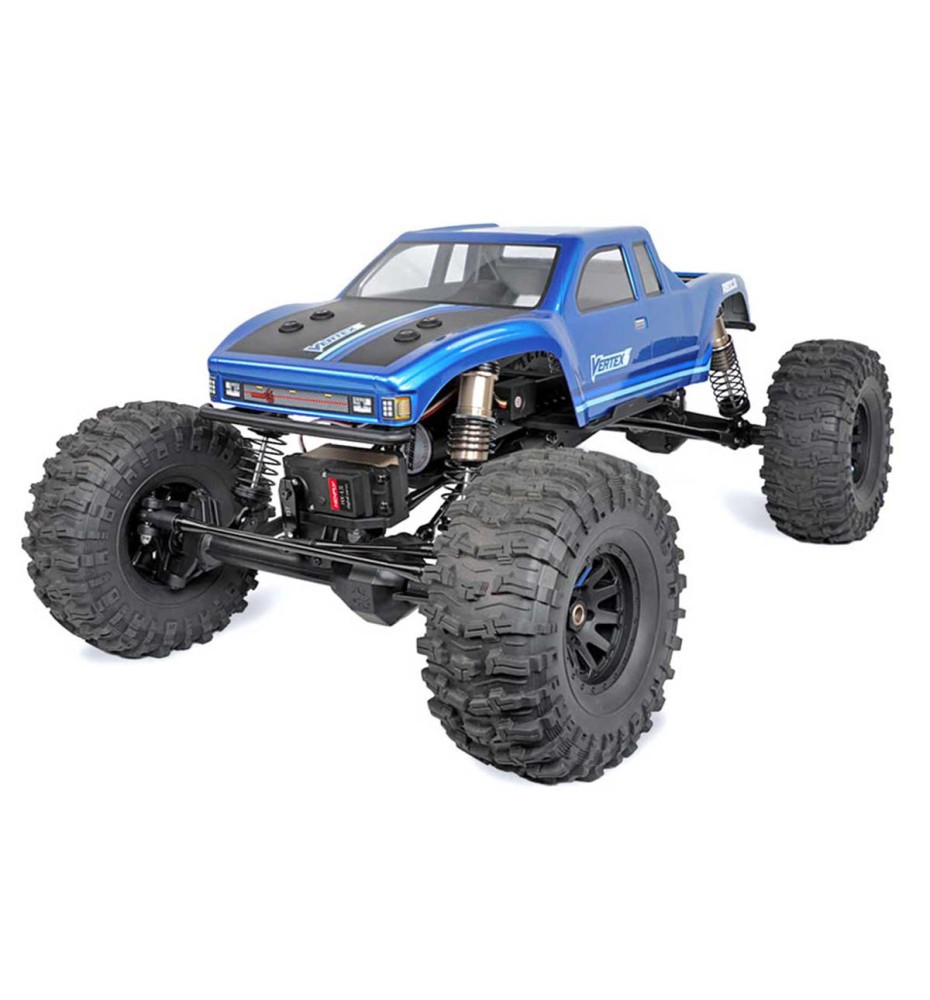

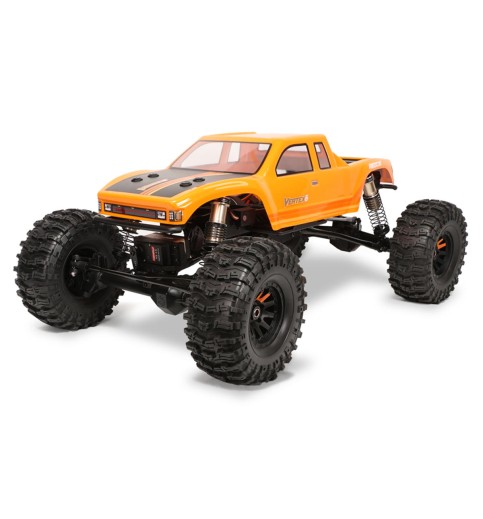

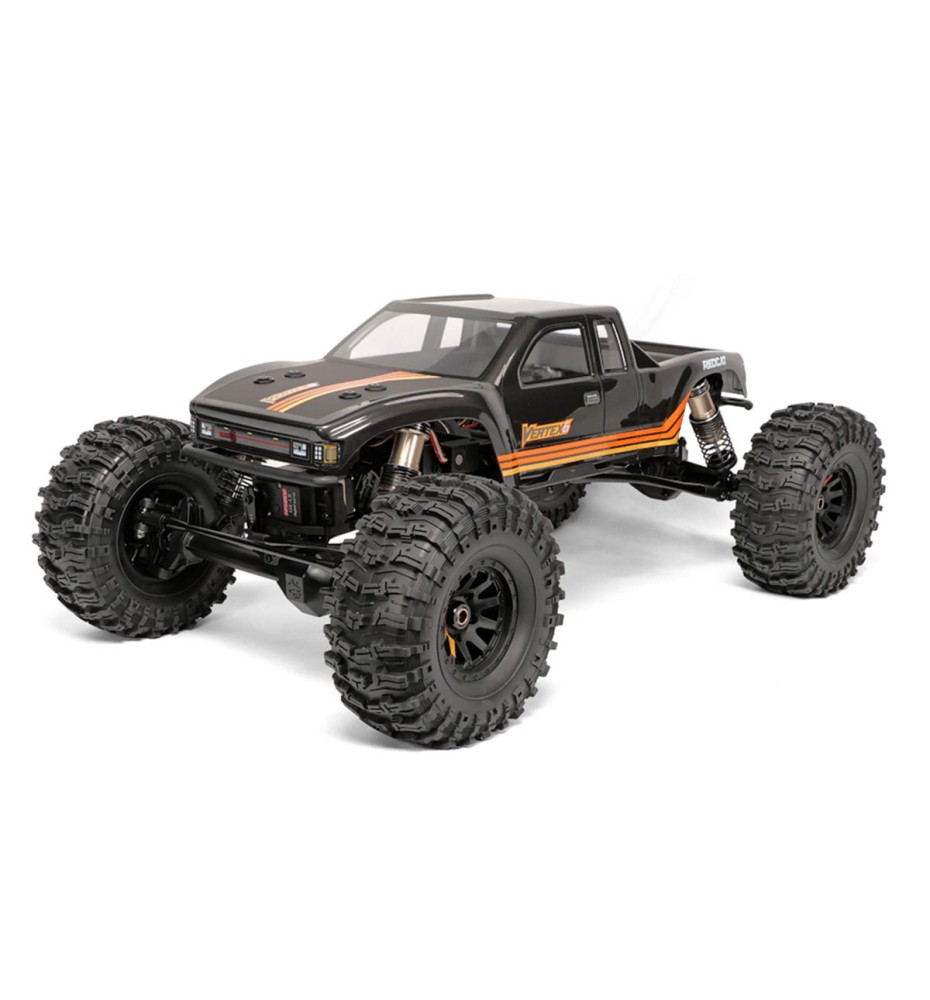

Redcat Vertex-6 Crawler 1/6 RTR 4WD Electric Brushless Rock Crawler w/2.4GHz Radio
Product Description
Redcat Vertex-6 - The Ultimate Large-Scale Crawling Experience
Brushless Fusion Power. 70KG Torque Servo. 1/6 Scale Dominance.
The Redcat Vertex-6 is a massive 1/6 scale crawler engineered for those who demand precision and power on a grand scale. At the heart of this beast is the Hobbywing Fusion RTR 2-in-1 FOC system, delivering silky-smooth low-speed control and explosive torque. With its low center of gravity (LCG) chassis and 4S-capable brushless system, the Vertex-6 redefines what a large-scale rock crawler can achieve.
FOC Technology & Massive Steering Torque
Equipped with Field-Oriented Control (FOC) technology, the Vertex-6 provides consistent torque and speed regardless of the load, making technical climbs feel effortless. To steer the massive 7-inch tires, Redcat equipped this rig with the HX-LS digital servo, pumping out a staggering 972oz/in (70kg) of torque. This ensures your wheels turn exactly when and where you want them, even when wedged between jagged rocks.
Bulletproof Drivetrain
Features reinforced solid axles with internal steel tube inserts, heavy-duty splined metal driveshafts, and hypoid-style gears for maximum ground clearance and durability.
Advanced Articulation
Double CV joints provide ultra-smooth movement even at extreme steering angles, paired with oil-filled emulsion shocks for consistent damping over rugged terrain.
Technical Specifications
| REDCAT VERTEX-6 SYSTEM DATA SHEET | |
|---|---|
| Scale | 1:6 Scale |
| Drive System | 4WD (Four Wheel Drive) |
| Power Source | 3S - 4S LiPo Compatibility |
| Dimensions (LxWxH) | 31.4" (800mm) x 15.7" (400mm) x 9.9" (253mm) |
| Wheelbase | 19.5 in (495.3mm) |
| Motor / ESC | Hobbywing Fusion 2-in-1 Brushless (1800KV) |
| Steering Servo | HX-LS 70kg Metal-Gear Digital Servo |
| Connector Type | XT60 |
| Wheel Hex | 17mm |
| Tires | 7" Soft Compound Aggressive Tread |
Pro Features for Serious Crawlers
- Selectable Overdrive: Transmitter selectable 0% and 30% overdrive for tight cornering.
- Adjustable Ackerman: Fine-tune your steering geometry with included tuning blocks.
- LCG Chassis: Low Center of Gravity design with forward-mounted motor for superior climbing stability.
- Tilt Body System: Easy access to internal components without removing the entire shell.
- Hypoid Gears: Increased ground clearance and smoother obstacle sliding.
Needed To Complete:
- (1) 3S or 4S LiPo Battery with XT60 Connector
- (1) Compatible LiPo Battery Charger
- (4) AA Batteries for Transmitter
Brand: Redcat Racing
Assembly Level: Ready-To-Run (RTR)*
Weight: Approximately 12.5 lbs (5.67 kg)
Pro Tip: For the best crawling experience, we recommend a 4S LiPo battery. The extra voltage on this 1/6 scale rig provides massive wheel speed and torque for the most vertical climbs.
