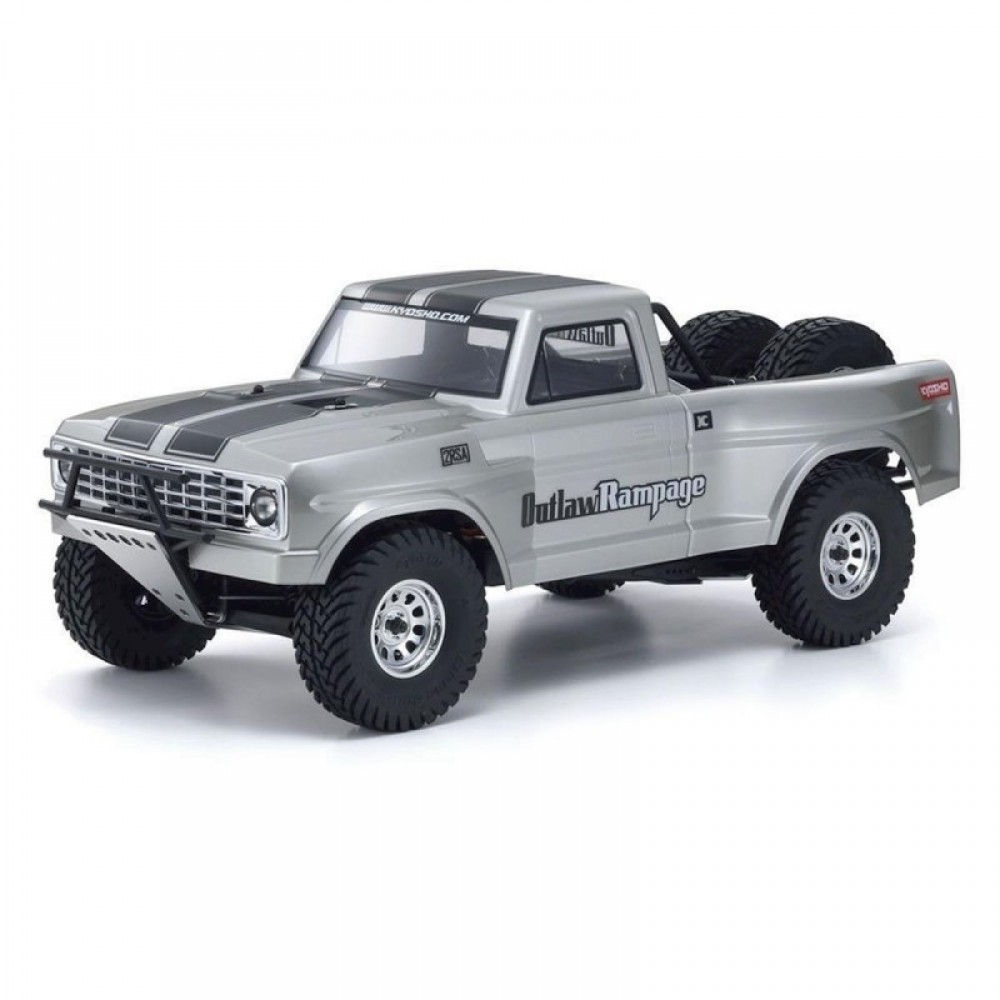

Kyosho Outlaw Rampage PRO 1/10 Scale Electric 2WD Trophy Truck ARR Kit
Product Description
Kyosho Outlaw Rampage PRO - Elite Scale Desert Racing
70% Pre-Assembled ARR. Aluminum Upgrades Standard. Rigid Rear Axle Mechanics.
Embody the raw, terrain-shredding mechanics of a real-world desert production racer with the Kyosho Outlaw Rampage PRO 1/10 Scale Electric 2WD Trophy Truck Kit. Arriving roughly 70% pre-assembled as an Almost Ready-to-Run (ARR) package, this premium "PRO" edition comes factory-loaded with high-end performance option parts. Featuring a scale roll cage structure, long-stroke aluminum oil-filled shocks, and aluminum chassis skid plates, this rear-wheel-drive machine offers the ultimate blend of building personalization and fast track deployment.

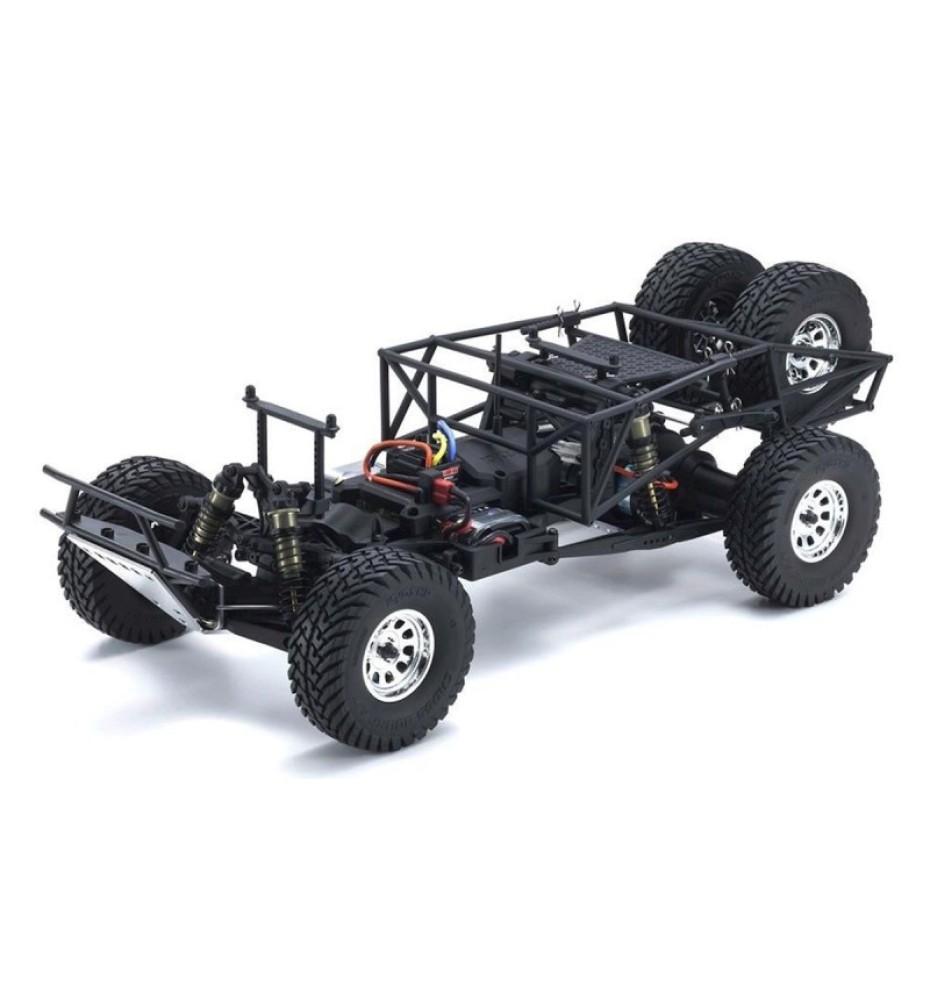

Advanced Scale Suspension & Heavy-Duty Drivetrain
The true-to-scale dynamic handling of the Outlaw Rampage PRO stems from its specialized suspension setup. The front axle utilizes a long-arm double-wishbone geometry for steering stability, while the rear suspension is linked directly to a **rigid solid axle differential** to mimic full-scale trophy truck travel. The drivetrain is fortified with a robust 32-pitch module counter and diff gear setup to easily handle high-power brushless motor conversions, supported flawlessly by a 20-bearing full ball-bearing specification.
Pro-Level Stabilizer Bars
Includes front and rear anti-roll sway stabilizers featuring 3 different wire gauge stiffness settings, allowing drivers to finely tune chassis body roll for track surface conditions.
1970-80s Vintage Scale Styling
Comes with a pre-cut clear body featuring two interchangeable front grill layouts (choose classic square or round headlights) and built-in mounting points for an optional LED light kit system.
Technical Specifications
| ARR TROPHY TRUCK SPECIFICATIONS | |
|---|---|
| Scale / Build Level | 1/10 Scale / ARR (70% Factory Pre-Assembled Chassis) |
| Drivetrain Layout | 2WD Rear-Wheel Drive with Rigid Axle Differential |
| Dimensions (L x W x H) | 561mm x 262mm x 231mm (Measured with body installed) |
| Wheelbase / Tread | 335mm / 204mm (Front & Rear Equalized) |
| Gear Profile | 48-Pitch Spur Gear / 32-Pitch Counter & Diff Gears (Ratio 12.65:1) |
| Tires / Hardware | φ108×38mm (Interchangeable Front/Rear) / 20 Ball Bearings & Hex Hardware |
| Chassis Weight | 2,600g (Approximate running weight depends on electronics) |
What's Included in the Kit?
- (1) 70% Pre-Assembled Outlaw Rampage PRO Chassis
- (1) Pre-Cut Clear Scale Polycarbonate Body Shell (1970-80s Style)
- (2) Interchangeable Front Grills (Square & Round Headlight options)
- (1) High-Detail Graphic Decal & Masking Sheet Set
- (1) Assembly Maintenance Pack (Hex Wrench, Cross Wrench, Shock Oil)
Needed To Complete (Not Included):
- (1) 2-Channel Surface R/C System (Transmitter and 1-Servo Receiver Unit)
- (1) 540-Class Brushed or Brushless Motor
- (1) Electronic Speed Control (ESC) unit matched to motor choice
- (1) 7.2V NiMH or 7.4V LiPo Battery Pack for the main chassis
- (1) Compatible Multi-Chemistry Battery Balance Charger
- Polycarbonate-safe Spray Paint (For detailing the clear body shell)
- Batteries for your Handheld Transmitter & R/C Workshop Tools
Brand: Kyosho Corporation
Completion Level: ARR / Almost Ready to Run Kit
Pro Features: Equipped with lever lock quick-access battery holder and one-handed radio plate connector holder for effortless trackside battery swaps. Specifications are subject to change without notice.
