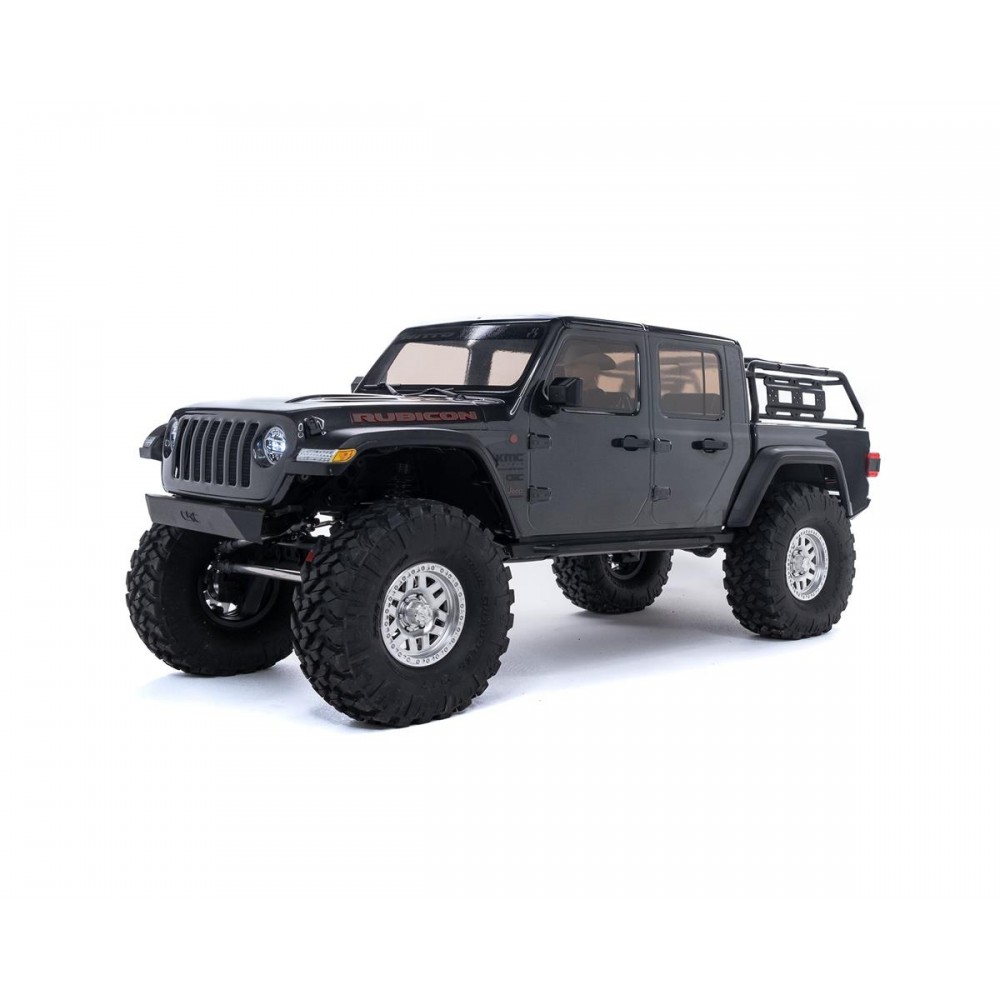

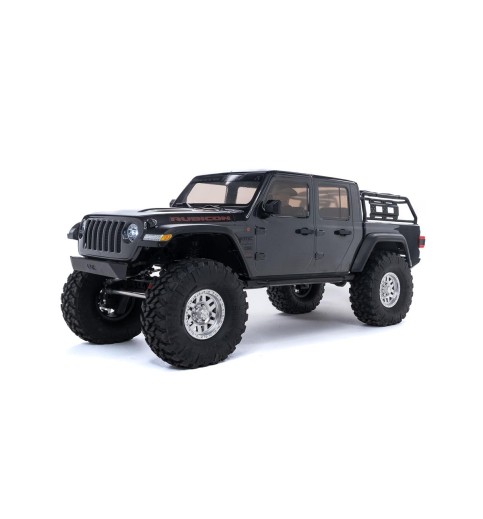

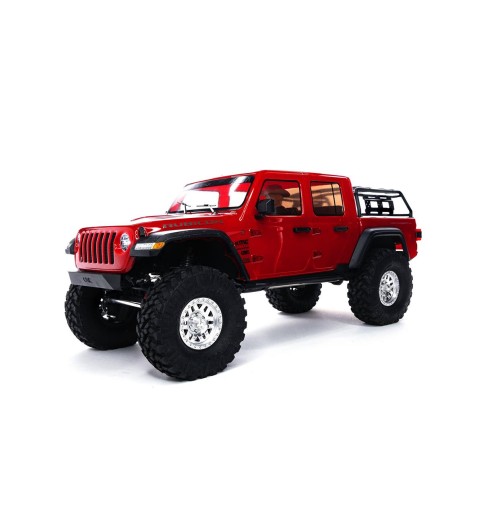

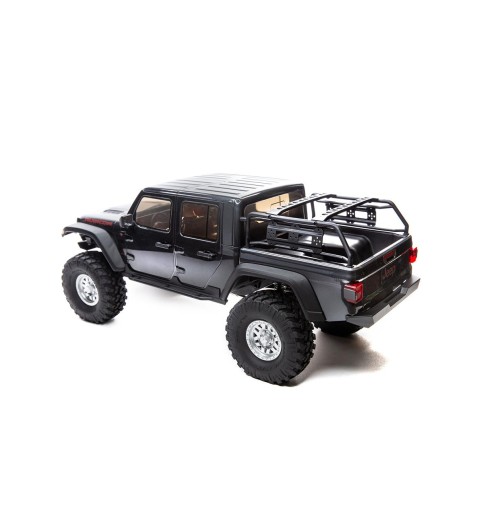

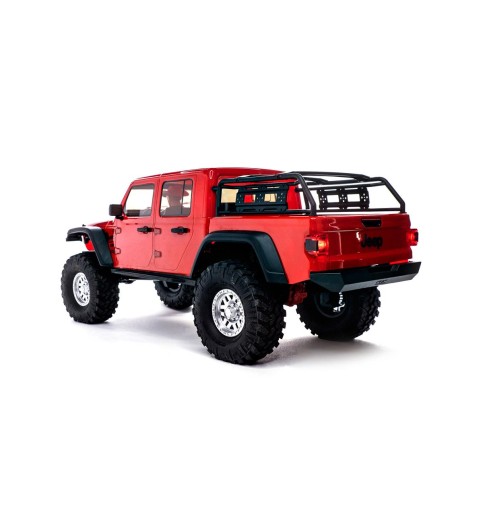

Axial SCX10 III "Jeep JT Gladiator" RTR 4WD Rock Crawler w/Portal Axles w/DX3 2.4GHz Radio
Product Description
Axial SCX10 III Jeep JT Gladiator - Next Level Trail Realism
Portal Axles. Replica V8 Engine. 13.9" Extended Wheelbase.
The Axial SCX10 III Jeep JT Gladiator RTR takes the legendary SCX10 platform to new heights of realism. Featuring a highly detailed replica V8 engine cover and a functional AR45 portal axle system, this crawler delivers unmatched ground clearance and scale aesthetics. With its extended 13.9-inch wheelbase, it perfectly captures the iconic stance of the 1:1 Jeep Gladiator.

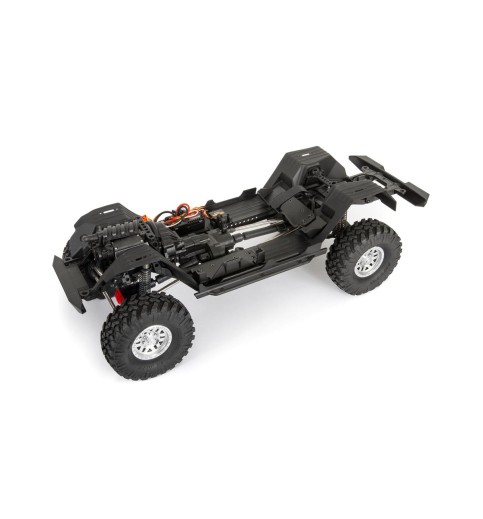

Technically Advanced Drivetrain
The SCX10 III isn't just about looks; it's engineered for performance. The AR45 Portal Axles use portal gears to lift the pumpkin for better clearance, while the Hypoid gears in the differential lockers reduce torque twist. The front-mounted 540 motor is mated to a realistic transmission housing and transfer case, providing the weight bias needed for technical climbs.
Portal Gear Clearance
AR45 Portal Axles increase ground clearance and reduce gear loads, combined with universals that provide a full 45 degrees of steering angle.
Scale V8 Housing
A realistic engine cover protects your motor while adding front-biased weight and an incredibly authentic look under the hood.
Technical Specifications
| CHASSIS & MECHANICAL SPECS | |
|---|---|
| Scale / Completion | 1/10 / Ready-To-Run (RTR) |
| Drivetrain | 4WD with AR45 Portal Axles |
| Wheelbase | 13.9" (353 mm) |
| Length / Width | 22.25" (565mm) / 9.25" (235mm) |
| Ground Clearance | 3" (76.2mm) |
| Weight | 7lbs (3175g) |
| GEARING & POWER SYSTEM | |
| Final Drive Ratio | 45.6:1 (Low) / 31.3:1 (High) |
| Gear Pitch / Spur / Pinion | 32-Pitch / 40T / 14T |
| ESC / Receiver | Spektrum Firma Smart 40A (Combined) |
| Radio | Spektrum DX3 DSMR 2.4GHz |
| Steering Servo | Spektrum 15kg Digital Servo |
What's Included?
- (1) Axial SCX10 III Jeep JT Gladiator 4WD RTR
- (1) Spektrum DX3 DSMR Radio Transmitter
- (1) Spektrum Firma Smart 40A ESC/Receiver (Installed)
- (1) Spektrum 15kg Servo (Installed)
- (1) Product Manual
Needed to Complete:
- 2S or 3S LiPo Battery with IC3/EC3 Connector
- Compatible LiPo Battery Charger
- (4) AA Batteries for Transmitter
Brand: Axial Racing (Horizon Hobby)
Completion Level: Ready-To-Run (RTR)
Note: The chassis is designed to accept both standard and "shorty" LiPo packs. The Firma 40A ESC features Smart technology for real-time telemetry when used with the DX3 radio.
