Align Tb70 Electric Top Combo Helicopter Kit Blue
Product Description

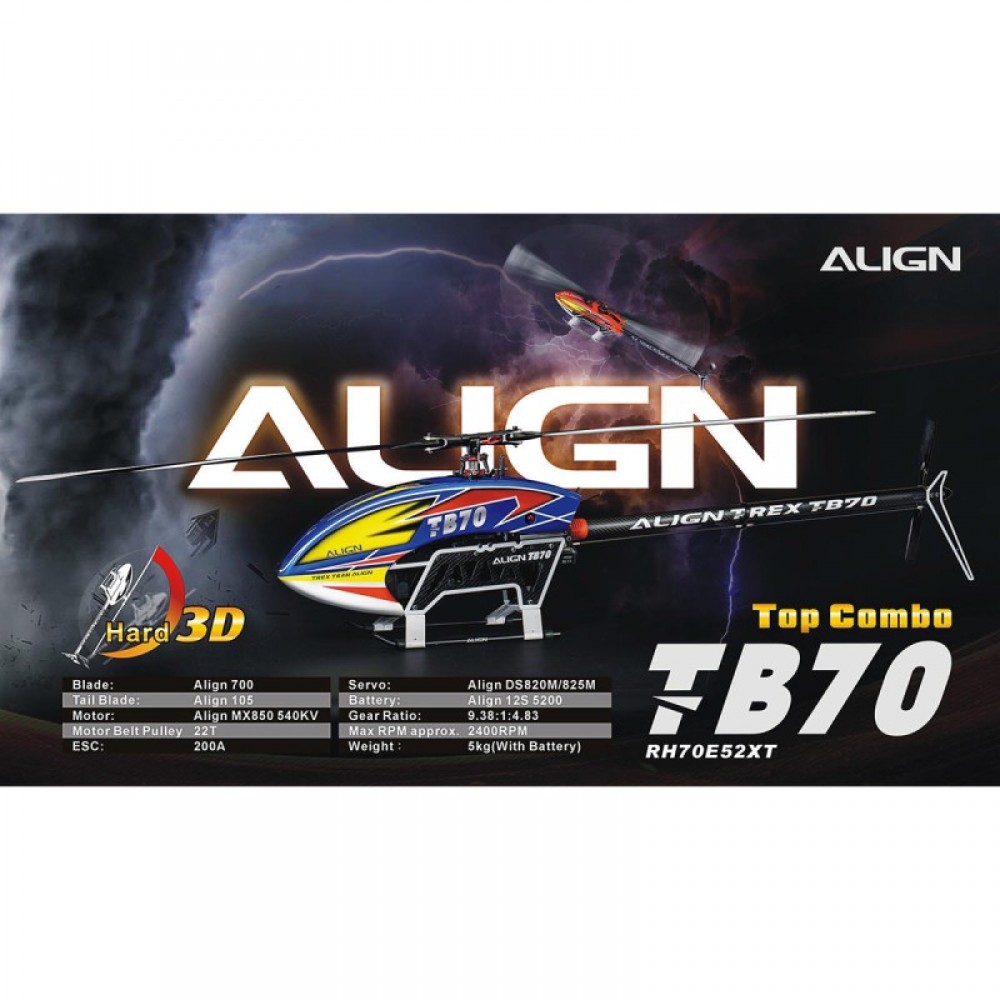

Align TB70 Electric Top Combo Helicopter Kit (Blue)
Modern 700-Class Performance. Extreme Power. Premium Flight Precision.
The Align TB70 Electric Top Combo Helicopter Kit is a modern evolution of the legendary T-Rex helicopter lineup, engineered to deliver exceptional stability, precision, and aggressive 3D capability. Designed for pilots who demand high-end performance, the TB70 introduces a completely refreshed airframe design while maintaining the proven flight characteristics Align helicopters are known for.
This Top Combo package includes premium electronics such as the powerful 850MX 4535 540KV brushless motor, high-performance RCE BL200A ESC, HV digital servos, and carbon fiber blades, giving pilots a near-complete premium 700-class helicopter setup ready for customization with their preferred flybarless system and radio equipment.
Modern TB70 Airframe Design
The TB70 features a sleek modernized frame layout with optimized weight distribution and improved structural rigidity for enhanced 3D performance. The belt-driven tail system offers smooth and reliable tail authority while reducing drivetrain complexity and maintenance requirements.
Designed for 12S to 14S electric power systems, the TB70 provides explosive power delivery, precise cyclic response, and stable flight characteristics suitable for demanding aerobatic pilots.
High-Power 12S/14S Capability
Compatible with modern high-voltage battery setups, delivering outstanding power, efficiency, and consistent head speed during demanding 3D maneuvers.
Premium Included Electronics
Includes high-performance brushless motor, 200A ESC, HV servos, and carbon fiber blades for a premium flying experience straight from the kit.
Technical Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Length | 1356mm (53.39in) |
| Width | 187mm (7.36in) |
| Height | 358mm (14.09in) |
| Weight | 2300g (Airframe) |
| Main Rotor Diameter | 1542mm (60.71in) |
| Tail Rotor Diameter | 279mm (10.98in) |
| POWER SYSTEM | |
| Power Type | Electric |
| Battery Input | 12S - 14S LiPo |
| Main Motor | 850MX 4535 Brushless Motor (540KV) |
| ESC | Align RCE BL200A ESC |
| AIRFRAME & ROTOR SYSTEM | |
| Tail Drive | Belt Drive |
| Main Rotor Head Type | Collective Pitch - Flybarless |
| Main Blade Material | Carbon Fiber |
| Channels Required | 6+ |
| Completion Level | Kit - Assembly Required |
Key Product Highlights
- Modernized TB70 Platform: Redesigned 700-class helicopter optimized for high-performance sport and aggressive 3D flying.
- 200A High-Power ESC: Supports demanding high-voltage power systems with reliable and efficient performance.
- HV Servo Package: Includes DS820M cyclic servos and DS825M rudder servo for fast response and powerful control authority.
- Belt-Driven Tail System: Smooth and dependable tail drive design with simplified maintenance and excellent tail holding power.
- Carbon Fiber Blade Set: Lightweight and rigid main and tail blades deliver precise control and stable flight characteristics.
Package Includes:
- Align TB70 Electric Helicopter Kit
- 850MX 4535 540KV Brushless Motor
- Align RCE BL200A ESC
- 3x DS820M Cyclic Servos
- 1x DS825M Rudder Servo
- Carbon Fiber Main Blade Set
- Carbon Fiber Tail Blade Set
Needed To Complete:
- 2.4GHz 6+ Channel Helicopter Transmitter
- 2.4GHz 6+ Channel Receiver
- 3-Axis Flybarless Gyro System
- Pitch Gauge
- (2) 6S 4500-5500mAh 45C+ LiPo Batteries
- or (1) 12S 4500-5500mAh 45C+ LiPo Battery
- LiPo Battery Charger
- Tools, Lubes & Greases for Assembly
Manufacturer: Align Corporation
Model: TB70 Electric Top Combo Helicopter Kit (Blue)
Note: Flybarless gyro system, radio system, receiver, batteries, charger, and assembly tools are required for operation.
