Product Description

Align T-Rex TN70 Top Combo Nitro Helicopter Kit w/(Motor, Pipe, Servos & Gyro)

This is the Allign T-Rex TN70 Top Combo Nitro Helicopter Kit. This high end nitro helicopter kit is loaded with updated features that elevate this kit to a higher level of performance and reliability. Equipped with CNC machined metal reinforcement plate and brace for added protection, heat dissipation and improved reinforcement to the mainframe and updated tail belt drive pulley design that effectively reduces vibration and tooth sweeping! In addition, an updated swashplate with an improved mounting rod design that provides supreme reliability and stability while preventing the detachment of the rods during extreme maneuvers.

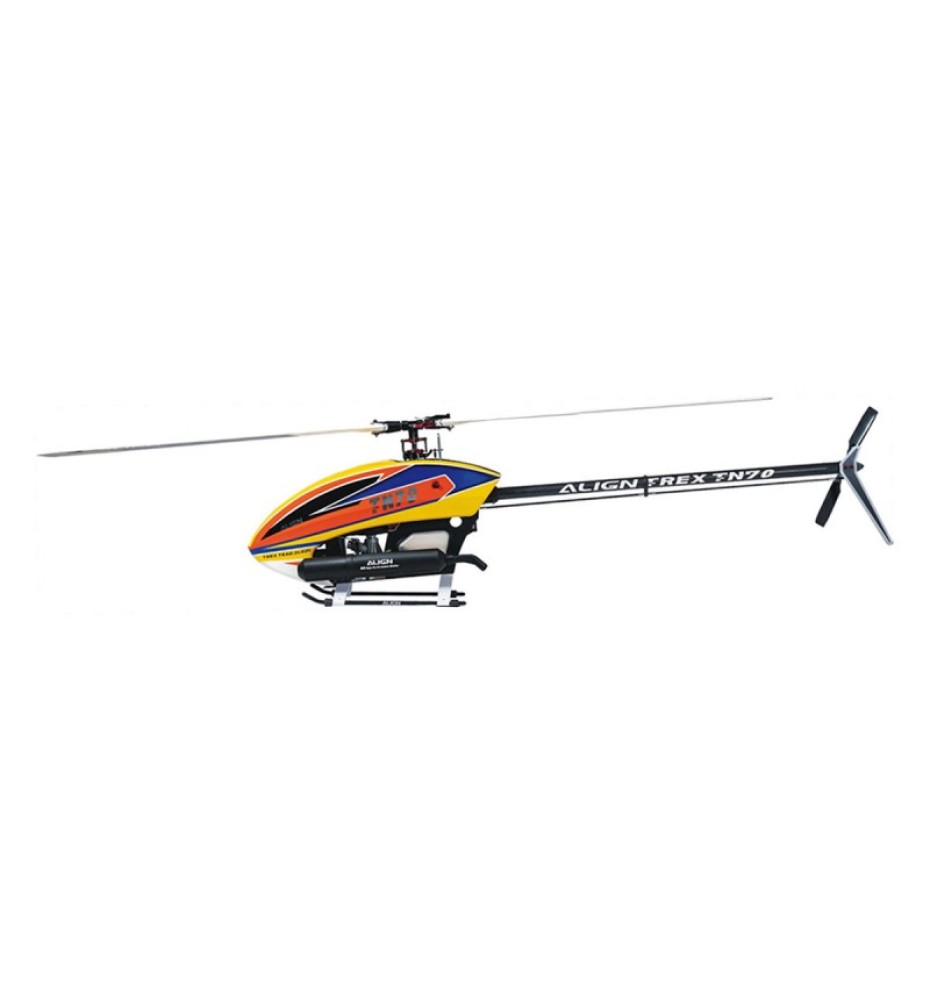

Note: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

  • Fast and remarkable carbon fiber tail boom design
  • High performance Allign 105 pipe that increases the overall power, reduces the noise and increase flights duration with fuel saving characteristics
  • Updated tail belt drive pulley design that effectively reduces vibration and tooth sweeping
  • CNC machined metal reinforcement plate and brace for added protection, heat dissipation and improved reinforcement to the mainframe
  • Updated CNC machined LCG (Low Center of Gravity) lightweight aluminum rotor head paired with CNC carbon steel grinding spindle to provide excellent stability and flight control
  • Engineered narrow body design that efficiently decreases gear abrasion and frame deformation during flights and increases overall durability
  • Updated lightweight body design with quick and continuous power response
  • Updated lightweight (120g) canopy
  • Guide R angle frame design that effectively reduces the hardness and anti-deformation ability
  • Updated lightweight and impact resistant landing skid
  • More stable widened structure
  • Press buckle canopy mounting bolt design
  • Anti-rotation bracket constructed from metal and wear resistant composite to effectively reduce friction resistance and have more precise servo movement
  • Updated super durable CNC machined Helical thread main drive (107T) gear
  • An integrated motor mounting bracket for more efficient heat dissipation
  • Properly tightened tail belt through the pulley arm to make maintenance more convenient and the flight more smooth
  • Updated torque tube umbrella gear made of industrial grade fiber composite with high rigidity and wear resistance features
  • Updated steel alloy clutch liner for added durability and heat dissipation

Specifications:

  • Engine: 105 Nitro
  • Length: 1352mm
  • Width: 202mm
  • Height: 397mm
  • Main Blade Length: 690mm
  • Main Rotor Diameter: 1543mm
  • Tail Length: 105mm
  • Tail Rotor Diameter: 279mm
  • Fuel Tank Capacity: 630cc
  • Weight: Approx. 4110g
  • Main Drive Gear: 107T
  • Autorotation Tail Drive Gear: 102T
  • Tail Drive Gear: 23T
  • Gear Ratio: 7.43 : 1 : 4.23

Includes:

  • (1) T-Rex TN70 Top Combo Helicopter Kit
  • (1) O.S Max-105HZ Nitro Engine
  • (1) Align 105 Pipe
  • (4) HV Brushless Servos (1xTail) (3xCyclic)
  • (1) Digital Throttle Servo
  • (1) Microbeast Flybarless Gyro
  • (1) B&M 2 in 1 (6.0-7.4V) Voltage Regulator (BEC)

Needed to Complete:

  • (1) 2.4GHz 6+ Channel Helicopter Radio Transmitter
  • (1) 2.4Ghz 6+ Channel Receiver
  • (1) Engine Starter
  • (1) 2S (7.4V) LiPo (1900-2600mAh Battery
  • 15-30% Nitro Fuel
  • (1) Multi-Function Tester
  • (1) Pitch Gauge
  • Various tools, lubes & greases for setup and assembly
