Align T-Rex 700x Dominator Super Combo Electric Helicopter Kit
Product Description

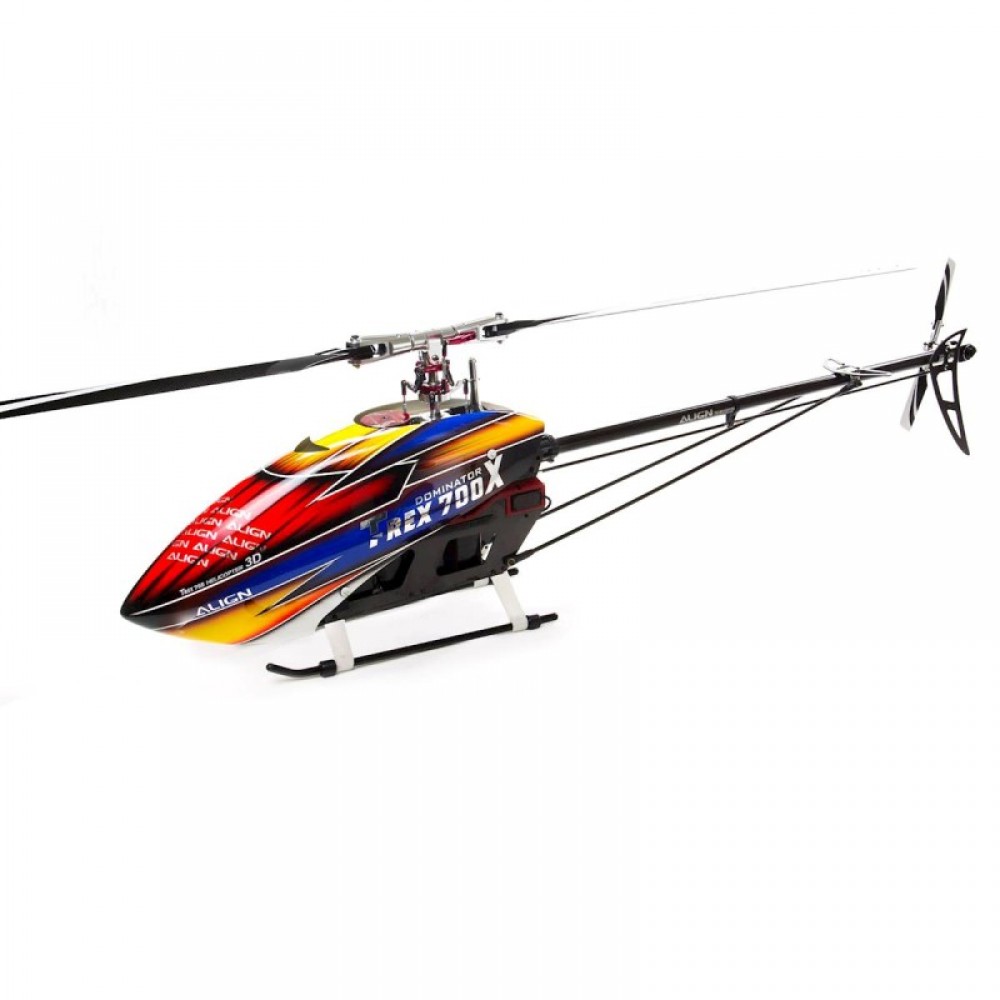

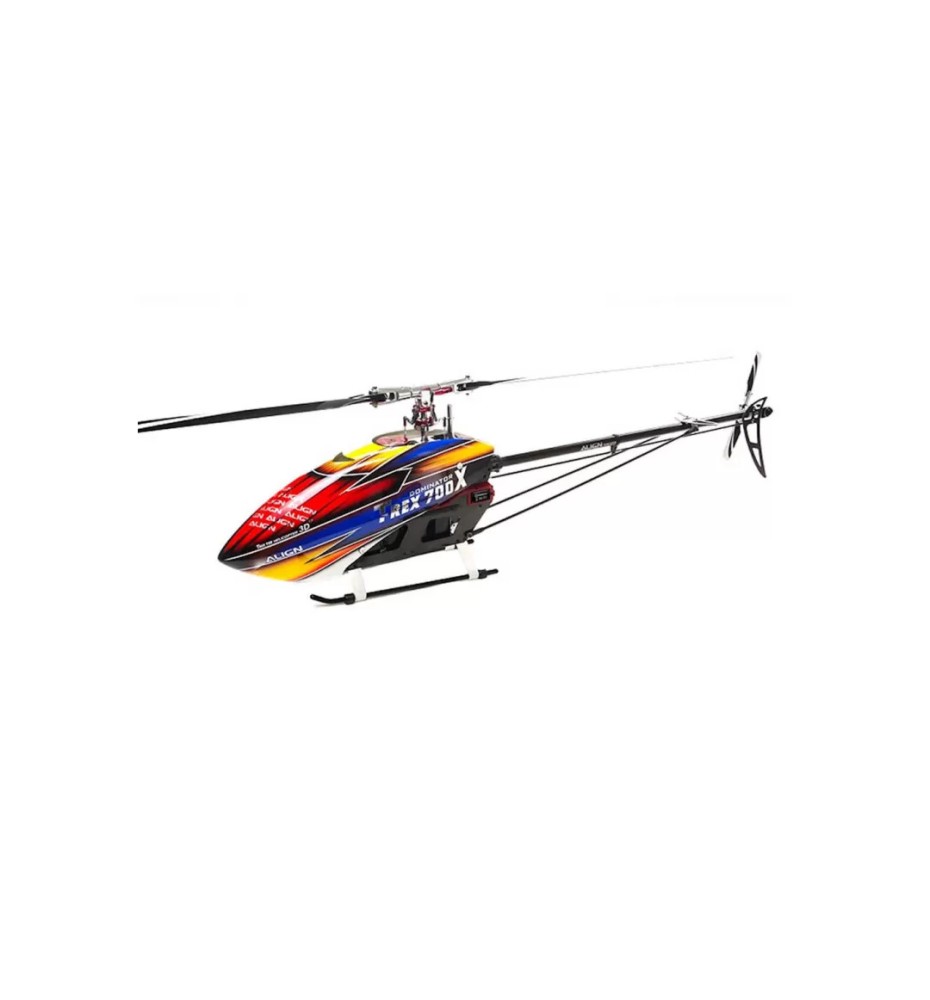

Align T-REX 700X Dominator Super Combo
Lightweight 700-Class Powerhouse. Elite 3D Precision. Dominator Performance.
The Align T-REX 700X Dominator Super Combo represents Align’s flagship 700-class electric helicopter platform, engineered specifically for demanding 3D pilots seeking exceptional precision, stability, and raw power. Featuring a dramatically reduced overall weight, upgraded electronics package, and advanced low center-of-gravity rotor head design, the 700X delivers incredibly responsive flight characteristics and unmatched control feel.
Designed around high-performance components including the 850MX 490KV motor, BL820M / BL825M HV brushless servos, and the proven Microbeast PLUS Flybarless System, the T-REX 700X Dominator is built to dominate aggressive aerobatic and precision 3D flight.
Advanced Lightweight 3D Platform
The T-REX 700X features a newly optimized lightweight airframe that reduces overall flying weight by nearly 400 grams compared to previous generations. Combined with the extreme low CG flybarless rotor head system, the result is faster cyclic response, improved maneuverability, and superior flight precision throughout demanding 3D routines.
The elaborate matte black carbon fiber frame and carbon/aluminum hybrid tail boom create a sleek premium appearance while maximizing rigidity and durability for high-energy flight conditions.
Extreme Low CG Rotor Head
Advanced flybarless rotor head system reduces drag while increasing flight responsiveness, cyclic precision, and overall control authority.
High-Efficiency 850MX Power System
The 850MX motor provides exceptional torque, low current draw, cooler operating temperatures, and consistent head speed during aggressive 3D maneuvers.
Technical Specifications

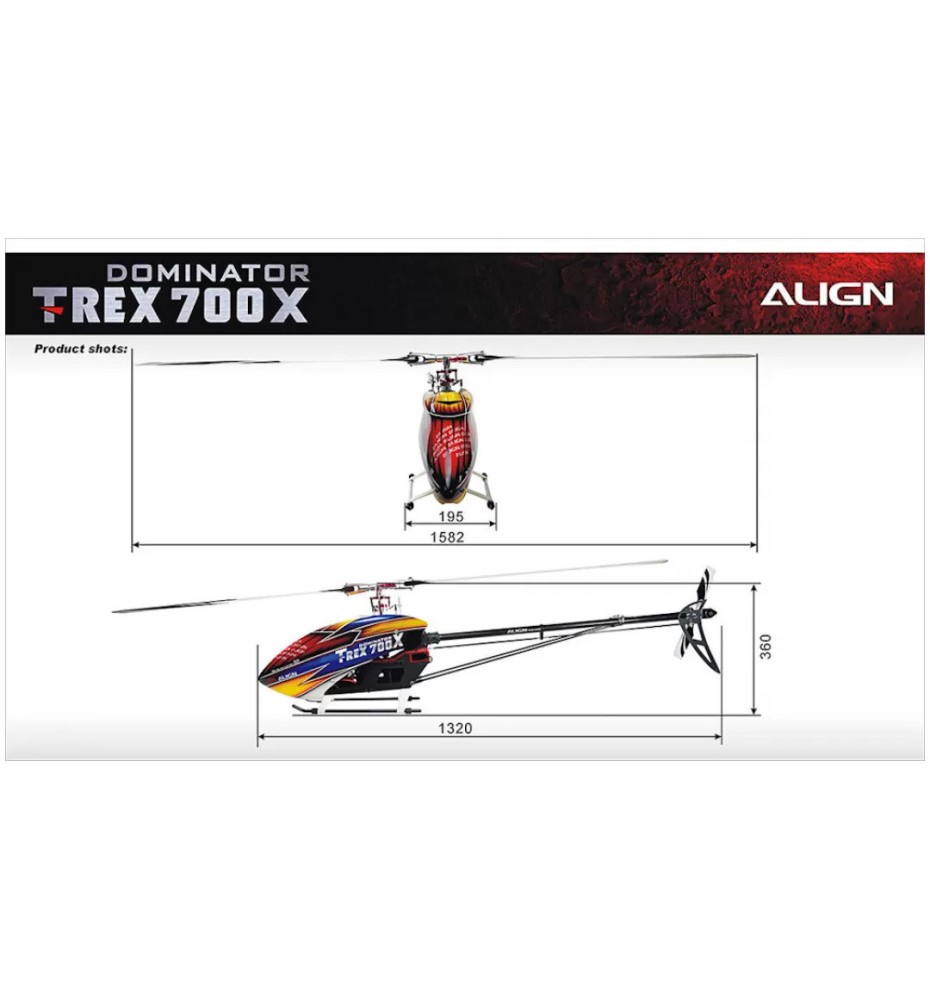

| GENERAL SPECIFICATIONS | |
|---|---|
| Length | 1320mm |
| Height | 360mm |
| Width | 220mm |
| Main Blade Length | 700mm |
| Main Rotor Diameter | 1582mm |
| Tail Rotor Diameter | 281mm |
| Estimated Ready-To-Fly Weight | 5100g |
| DRIVETRAIN & GEARING | |
| Motor Drive Gear | 13T |
| Main Drive Gear | 110T |
| Autorotation Tail Drive Gear | 104T |
| Tail Drive Gear | 22T |
| Drive Gear Ratio | 1 : 8.46 : 4.72 |
| ELECTRONICS & COMPONENTS | |
| Motor | Align 850MX Brushless Motor (490KV) |
| ESC | Align RCE-BL130A Brushless ESC |
| Flybarless System | Microbeast PLUS |
Key Product Highlights
- Brushless HV Servos: BL820M and BL825M servos provide exceptional speed, torque, and efficiency with low operating temperatures for increased lifespan.
- CNC Reinforcement Plate: Strengthens the narrow upper frame while acting as an efficient motor heat sink capable of reducing motor temperatures significantly.
- Hybrid Carbon Tail Boom: Carbon fiber and aluminum embedded structure provides high rigidity with lightweight construction and premium appearance.
- Enhanced Tail Control: High-precision tail gearbox and dual-point mounted pitch assembly improve tail locking and rudder response.
- Improved Crash Durability: 5-degree nose-down landing gear stance helps protect the tail rotor during takeoff and landing.
- Heavy-Duty Main Gear: Thicker main gear design increases durability and power handling during aggressive flight.
Package Includes:
- T-REX 700X Dominator Kit
- 700mm Carbon Fiber Main Blade Set
- 106mm 3K Carbon Fiber Tail Blade Set
- 850MX Brushless Motor (490KV)
- 3K Carbon Fiber Tail Boom
- 3x BL820M HV Brushless Servos
- 1x BL825M HV Brushless Servo
- Align RCE-BL130A 130A ESC
- Microbeast PLUS Flybarless System
Needed To Complete:
- 7+ Channel Helicopter Transmitter
- 7+ Channel Receiver
- Digital Pitch Gauge
- (2) 6S Li-Po 4500mAh - 5200mAh Batteries
- Compatible LiPo Battery Charger
Manufacturer: Align Corporation
Model: T-REX 700X Dominator Super Combo
Note: This Super Combo includes motor, ESC, servos, blades, tail boom, and flybarless system. Radio system, receiver, batteries, and charger are required for operation.
