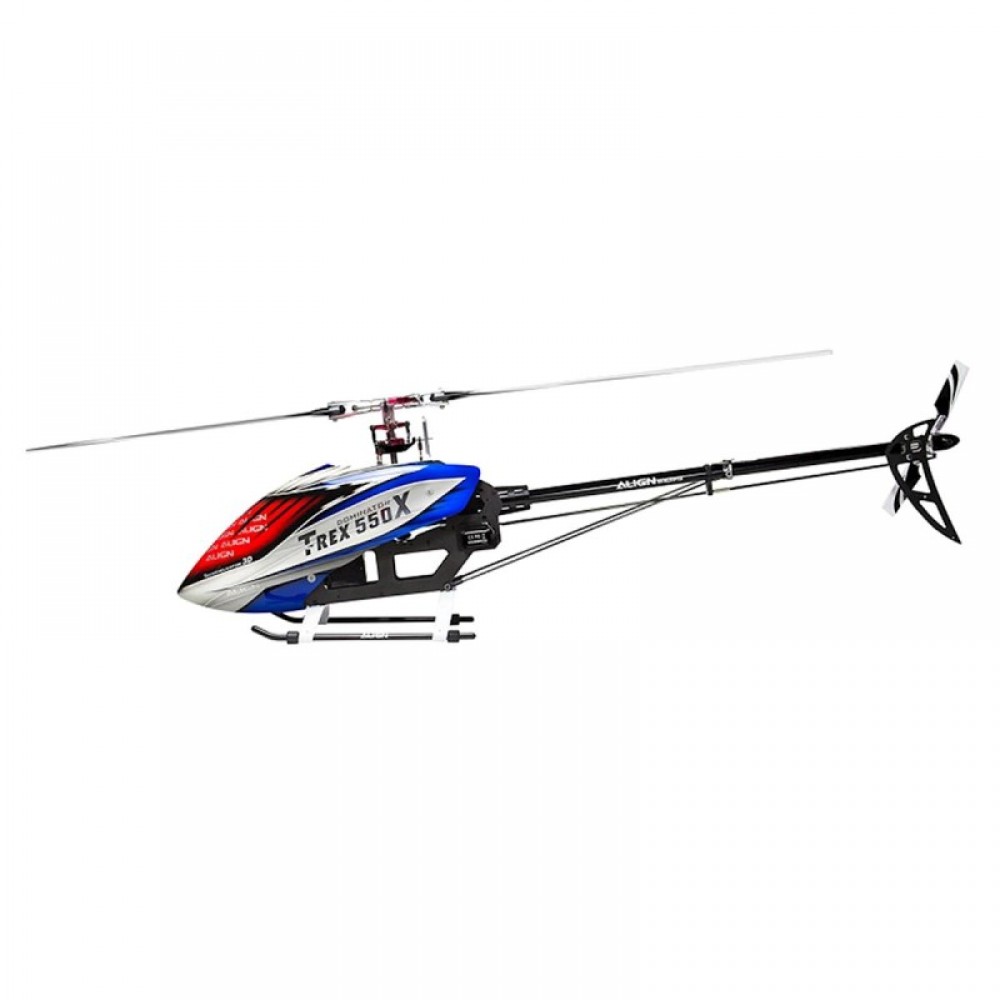

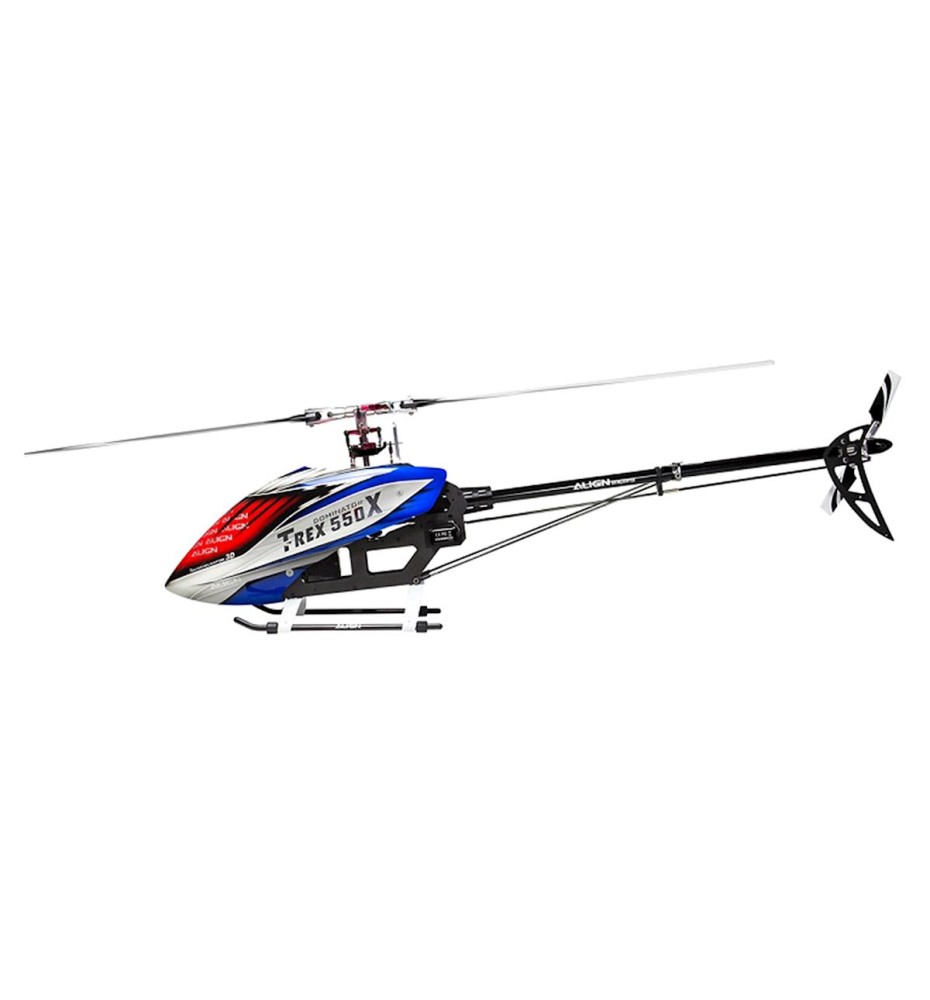

Align T-REX 550X Dominator Super Combo Helicopter Kit
Product Description
Align T-REX 550X Dominator Super Combo
Powerful 3D Performance. High Voltage Electronics. Precision Engineering.
The Align T-REX 550X Dominator Super Combo combines the perfect balance of agility, stability, and raw power in a highly capable 550-class helicopter platform. Designed for demanding sport and aggressive 3D pilots, the 550X incorporates Align’s latest design innovations with a superior high-voltage power system for exceptional flight performance.
Compared to the previous 550L generation, the 550X Dominator introduces upgraded High Voltage servos, a powerful 730MX 960KV motor, improved tail pitch assembly, integrated battery rail system, and a significant overall weight reduction for enhanced flight agility and responsiveness.
Advanced Flybarless & Airframe Design
Equipped with the renowned Microbeast PLUS Flybarless System, the T-REX 550X delivers extremely precise cyclic response, superior tail authority, and excellent flight stability. The low center-of-gravity EFL rotor head design provides direct control feel while maximizing 3D capability and flight speed.
The carbon composite side frames integrate battery mounting rails and a patented sliding battery tray system with spring-loaded latching for fast battery changes and improved battery protection during demanding flight conditions.
Low CG EFL Rotor Head
Optimized low center-of-gravity rotor head design delivers outstanding 3D precision, faster cyclic response, and improved flight stability.
High Voltage Electronics
Equipped with powerful HV brushless servos and a 100A ESC for superior torque, efficiency, and reliable high-performance operation.
Technical Specifications
| GENERAL SPECIFICATIONS | |
|---|---|
| Length | 1163mm |
| Height | 344mm |
| Width | 196mm |
| Main Blade Length | 550mm |
| Main Rotor Diameter | 1248mm |
| Tail Rotor Diameter | 254mm |
| DRIVETRAIN & GEARING | |
| Motor Drive Gear | 16T |
| Main Drive Gear | 112T |
| Autorotation Tail Drive Gear | 131T |
| Tail Drive Gear | 34T |
| Drive Gear Ratio | 7:1:3.85 |
| BEASTX PLUS SPECIFICATIONS | |
| Input Voltage | 3.5V - 8.5V DC |
| Processor | 32 Bit ARM |
| Sensor | 6-Axis MEMS (Gyro + Accelerometer) |
| Dimensions | 36 x 25 x 14mm |
| Weight | 11g (without wires) |
Key Product Highlights
- Integrated Battery Rail System: Patented sliding tray design allows quick battery changes while protecting the battery pack.
- Precision Tail Assembly: Dual-point mounted tail pitch system minimizes slop and improves rudder precision.
- Direct Servo CCPM Layout: Simplifies installation while improving overall control geometry and aesthetics.
- HV Brushless Servos: DS820M and DS825M servos provide outstanding torque and responsiveness for demanding 3D flight.
- Carbon Fiber Construction: Lightweight and rigid carbon side frames maximize durability and flight performance.
Package Includes:
- T-REX 550X Dominator Kit
- 550mm Carbon Fiber Main Blade Set
- 90mm Carbon Fiber Tail Blade Set
- 730MX Brushless Motor (960KV)
- 3x DS820M HV Brushless Servos
- 1x DS825M HV Brushless Servo
- Align RCE-BL100A Brushless ESC
- Microbeast PLUS Flybarless System
Needed To Complete:
- 6+ Channel Helicopter Transmitter
- 6+ Channel Receiver
- Pitch Gauge or Digital Pitch Gauge
- 6S Li-Po Battery (2600mAh - 5200mAh)
- Compatible LiPo Battery Charger
Manufacturer: Align Corporation
Model: T-REX 550X Dominator Super Combo
Note: This Super Combo includes motor, ESC, servos, blades, and flybarless system. Radio system, receiver, battery, and charger are required for operation.
