Futaba 32MZ 2.4GHz FASSTest 18-Channel Radio System (Airplane) w/R7208SB Receiver
- Brand: Futaba
- Product Code: FTB70622MT
- Availability: In Stock
Futaba 32MZ - The Ultimate Professional Radio System
Windows Embedded 7. Dual Processors. 32-Channel Multiprop Expansion.
The Futaba 32MZ represents the absolute cutting edge of RC technology. Utilizing Microsoft Windows Embedded Compact 7 for unparalleled dependability, this flagship transmitter features a dual-processor system to optimize response time and precision. Whether you are flying complex scale giants or high-performance jets, the 32MZ provides the most sophisticated and customizable interface in the world of radio control.
Cutting-Edge Display & Telemetry
The 32MZ features a stunning full-color backlit LCD touch screen paired with a secondary sub-display for instant data access. With the FASSTest bidirectional communication system, pilots receive real-time telemetry data. Innovation continues with the Multiprop function, which can expand your control up to 32 channels, making it the perfect choice for models with complex functions like lights, retracts, and scale details.
Dual Processor Power
Dedicated processors handle the complex UI and RF output separately, ensuring lightning-fast response times and rock-solid link stability.
R7208SB Receiver
Includes the latest receiver with built-in FDLS (Futaba Dual Link System), offering dual antenna diversity and high-voltage compatibility.
Technical Specifications
| FUTABA 32MZ SYSTEM SPECIFICATIONS | |
|---|---|

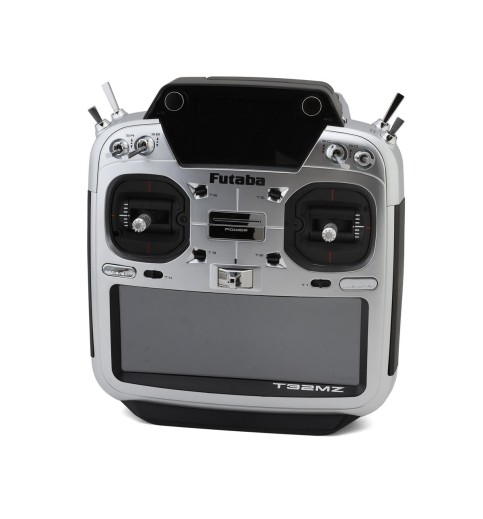

| T32MZ Transmitter | |
| Frequency / Protocol | 2.4GHz / FASSTest, FASST, T-FHSS, S-FHSS |
| Channels | 18 Standard (Expandable to 32 via Multiprop) |
| Operating System | Microsoft Windows Embedded Compact 7 |
| Battery | 3.8V 6600mAh LiPo |
| Weight (with battery) | 1126g |
| R7208SB Receiver | |
| Input Voltage | 3.7V - 7.4V (Compatible with LiFe/LiPo) |
| Features | S.Bus2, Dual Antenna Diversity, FDLS Built-in |
| Dimensions / Weight | 24.9x47.3x14.3mm / 12g |
Key System Features
- Voice Recording: Store up to 24 voice files for switch assignment and commands.
- Music Playback: WMA support for music stored on microSD card.
- Precise Setting: Most mixing functions utilize curve operations for ultimate accuracy.
- Customizable Hardware: Ability to replace shoulder toggle switches with optional 2-pos, 3-pos, or momentary types.
- High-Capacity Power: 6600mAh LiPo battery ensures extended flight sessions without recharging.
Important Note on Multiprop:
The resolution of Multiprop channels is lower than linear channels. Mixing functions cannot be used on Multiprop channels, and simultaneous use may slightly impact response time.
Brand: Futaba Corporation

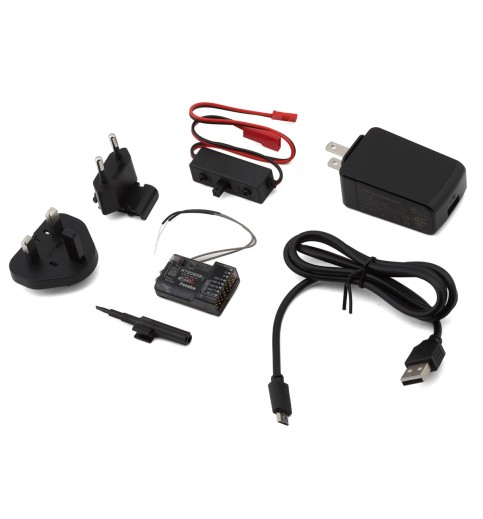

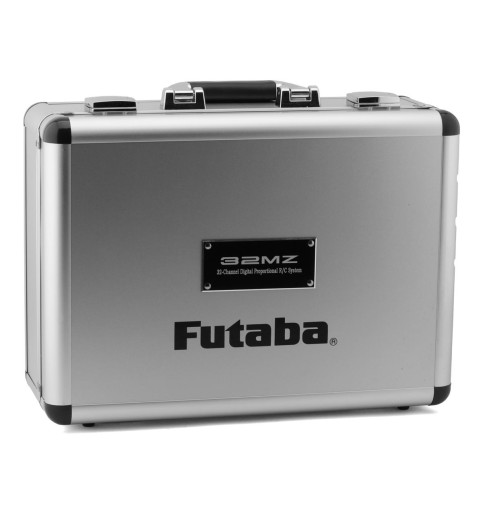

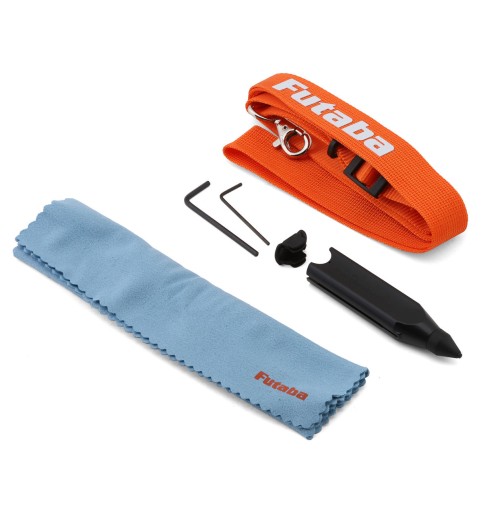

Includes: T32MZ Transmitter, R7208SB Receiver, 6600mAh LiPo, AC Adapter, Neck Strap, and Specialized Tool Box.
Pro Tip: Use a high-speed microSD card to ensure smooth voice recording and reliable data logging during your flights.
